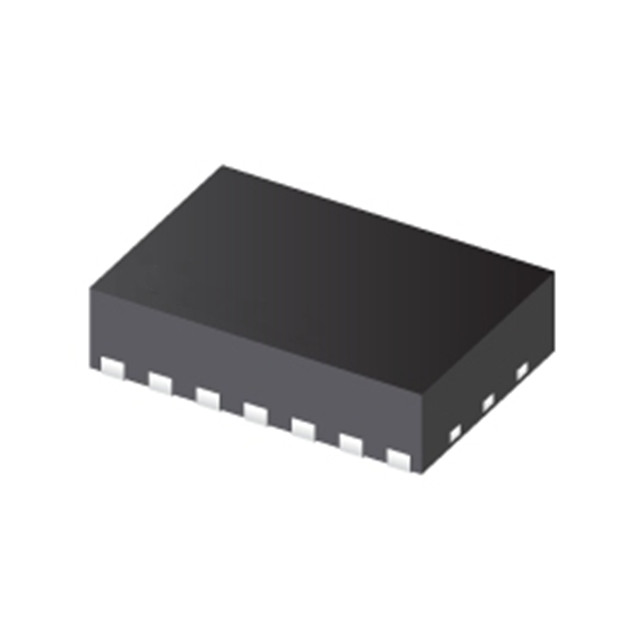

The TPS922054DMTR device is a 4A non-synchronous buck LED driver with a wide input range of 4.5V to 65V. By integrating a low-side NMOS switch, the device not only drives leds, but also charges batteries with high power density and efficiency. The series also supports common anode connections and single-layer PCB designs. The switching frequency can be configured in the range of 100kHz to 2.2MHz and has an optional spread frequency function for better EMI performance.

Features:

Wide input range: 4.5V to 65V

LED common anode connection

Integrated 150mΩ MOSFETs with typical current limit of 3A/6A

Optional switching frequency: 100kHz to 2.2MHz

TPS922053 and TPS922055 spread spectrum

Advanced dimming options

Analog dimming (256:1)

Fast PWM dimming (150ns pulse width)

Hybrid flexible dimming (2,000:1 at 20kHz PWM, 10,000:1 at 4kHz PWM, 1,000:1 at 120Hz PWM).

CC/CV charging mode

Overall protection characteristic

LED open and short circuit protection

Switch FET open and short circuit protection

External component failure protection

Weekly term flow

Thermal shutoff

Fault output

Configurable thermal reentry curve

Applications:

• Constant lighting

Indoor, outdoor, professional lighting

Medical and surgical lighting

Projector, laser TV, printer, IP camera

• Instant lighting

Machine vision, camera flash

Fire alarm, stroboscopic

• CC and CV sources

LCD backlight

Battery charging

TEC control
