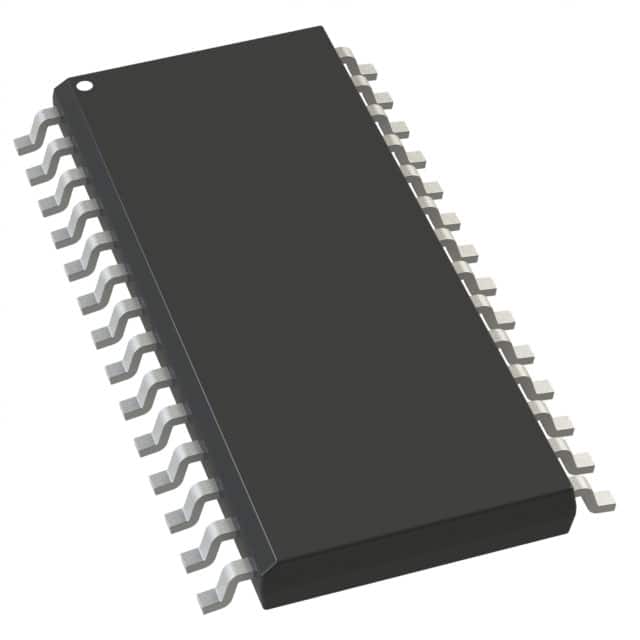

For picture reference, please see the specifications
< >

Commodity Model:LT3795EFE

Trade Name:LED Drivers

Brand:ADI

Particular Year:25+

Package:TSSOP-28

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3795EFE
Package
TSSOP-28
Describe
110V LED controller with spread spectrum frequency modulation function

Product Description

The LT3795EFE is a DC/DC controller specifically designed to regulate a constant current or constant voltage and is highly suitable for driving leds. The LT3795EFE drives a low-voltage side external N-channel power MOSFET from an internally adjusted 7.7V power supply. The fixed frequency and current mode architecture achieves stable operation over a wide range of power supply voltages and output voltages. The spread spectrum frequency modulation (SSFM) function can be activated to improve electromagnetic compatibility (EMC) performance.


The LT3795EFE has the following main features:

3000:1 True color PWM™ dimming

Wide input voltage range: 4.5V to 110V

Input and output current reports

PMOS switch driver for PWM and output disconnection

Internal spread spectrum

Constant pressure regulation capability: ±2%

Constant current regulation capability: ±3%0V ≤ VOUT ≤ 110V

Programmable input current limiting

Pressing CTRL can linearly adjust the LED current

Adjustable frequency: 100 KHZ to 1MHz

Programmable open-circuit LED protection with the OPENLED logo

Short-circuit protection and SHORTLED marking

Programmable undervoltage protection with hysteresis

Soft start is achieved through a programmable fault restart timer

C/10 detection for battery charging

It offers a 28-pin TSSOP package

Passed the AEC-Q100 automotive application certification


In addition, the LT3795EFE also includes a separate input current detection amplifier for limiting the input current. The following are its application scenarios:

High-power LED, high-voltage LED

Battery charger

Accurate current-limiting voltage regulator
