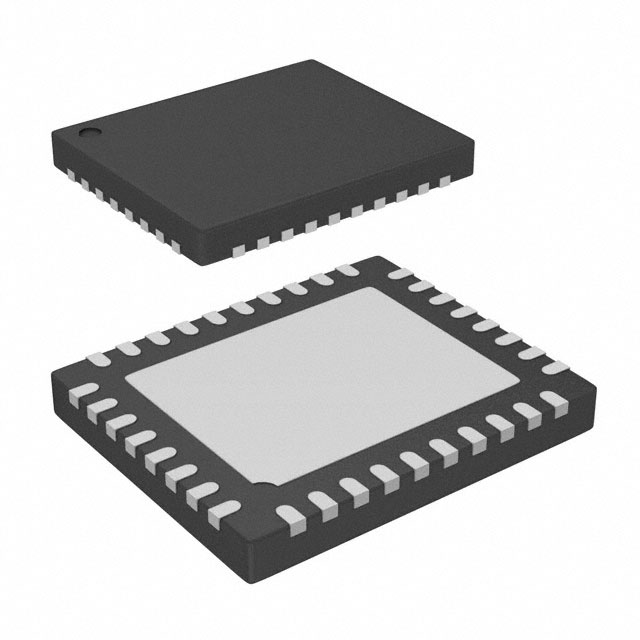

Commodity Model:LT3744EUHE

Trade Name:LED Drivers

Brand:ADI

Particular Year:25+

Package:QFN-36

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3744EUHE
Package
QFN-36
Describe
High-current, synchronous step-down LED driver

Product Description

The LT3744EUHE is a fixed-frequency, synchronous step-down DC/DC controller, specifically designed to drive an LED load with a continuous current of up to 20A or a pulse current of up to 40A. The peak current mode controller will maintain an LED current regulation rate of ±3% over a wide output voltage range from VEE to VIN. By allowing VEE to float to a negative voltage, a simple single step-down output stage can be used to drive multiple series leds from a single lithium-ion battery. PWM dimming is achieved by using the PWM pin. The adjusted LED current is set using the analog voltage on the CTRL pin. Stabilizing voltage and overvoltage protection are set by a voltage divider connected between the output and the FB pin. The switching frequency can be set within the range of 100 KHZ to 1MHz through an external resistor on the RT pin.


The LT3744EUHE mainly has the following features:

It is highly suitable for driving leds up to 40A

PWM dimming up to 3000:1

20:1 simulated dimming

±3% current regulation accuracy

±3% voltage regulation accuracy

The unique negative output buck-boost topology allows ground heat sinks to be used for RGB leds

Input voltage range: 3.3V to 36V

Peak current mode with DC LED current detection function

Open circuit and short circuit LED protection and fault reporting function

The floating LED driver enables a single power supply solution to drive multi-color leds or individual leds with three different regulating currents

Heat-resistant performance enhanced 5mm x 6mm QFN 36-pin package


Application scenarios

The LT3744EUHE is suitable for high-power LED lighting, laser diodes and other scenarios, and needs to be paired with external power devices to achieve high-voltage conversion. The input voltage needs to be ≥7V to maintain a 12A current regulation.
