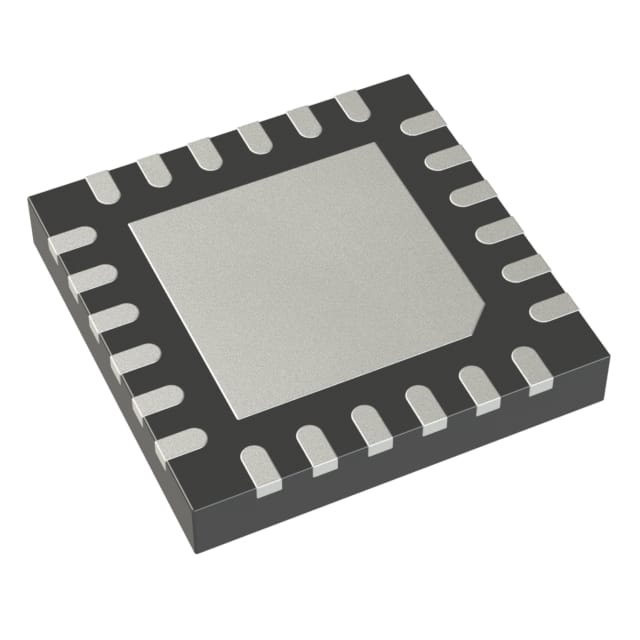

Commodity Model:MAX25512BATGA

Trade Name:Automotive LED Drivers

Brand:Maxim

Particular Year:25+

Package:24-TQFN

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX25512BATGA
Package
24-TQFN
Describe
I2C-Controlled 4-Channel Low-Voltage 120mA LED Backlight Driver with Integrated Boost Converter

Product Description

The MAX25512BATGA is a 4-channel white LED backlight driver with an integrated current-mode boost converter. It operates within a switching frequency range of 400kHz to 2.2MHz and features spread spectrum functionality. Phase shift of the output channel is included as an option to further reduce electromagnetic interference (EMI).


Technical parameters

Type: DC DC controller

Topology: SEPIC, boost voltage

Internal switch: Yes

Output number: 4

Voltage - Power supply (minimum) : 3V

Voltage - Power supply (maximum) : 36V

Voltage - Output: -

Current - Output/Channel: 120mA

Frequency: 400kHz to 2.2MHz

Dimming: I2C

Application: Backlight

Operating temperature: -40°C to 125°C

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Package/Housing: 24-TQFN


Encapsulation and application scenarios

The MAX25512BATGA is packaged in a 4mm×4mm TQFN and operates within a temperature range of -40°C to +125°C, making it suitable for high-temperature environments. Typical applications include scenarios such as laptops, monitors, and in-vehicle display systems that require multi-channel low-voltage LED drivers. ‌


Associated Products

Model

Brand

Package

Quantity

Describe

TPS92642QPWPRQ1

TI

HTSSOP-16

3000

Synchronous step-down infrared LED driver for automobiles

TPS92543QPKDRQ1

TI

HTQFP-48

3000

Automotive-grade LED driver with 65V synchronous boost controller

TLD1120EL

INFINEON

PG-SSOP-14

5500

360mA, LITIX™ - Automotive LED Driver, PG-SSOP-14

LP5892QRRFRQ1

TI

VQFN-76

3000

Automotive high current 48x16 LED matrix driver with 16-bit PWM dimming and ultra low power consumption

MAX25608EAUI

Maxim

TSSOP-28

3000

12 Switches, LED Matrix Manager, TSSOP-28

TLD2314EL

INFINEON

SSOP-14

7500

LED Driver IC 3 Output Linear Dimming 120mA PG-SSOP-14-5

TPS92601BQPWPRQ1

TI

HTSSOP-20

3000

Automotive Dual Channel Automotive Headlight LED Driver, HTSSOP-20

TPS92611QDGNRQ1

TI

HVSSOP-8

20000

Automotive Single-Channel LED Driver with 300mA Output, Open and Short Circuit Detection

TPS92530QPKDRQ1

TI

HTQFP-48

3000

Automotive 3-Channel, Constant Current, Constant Voltage Synchronous Buck LED Driver

TLC69610QRTWRQ1

TI

24-WQFN

3000

60mA Automotive Scan MOSFET Controller
