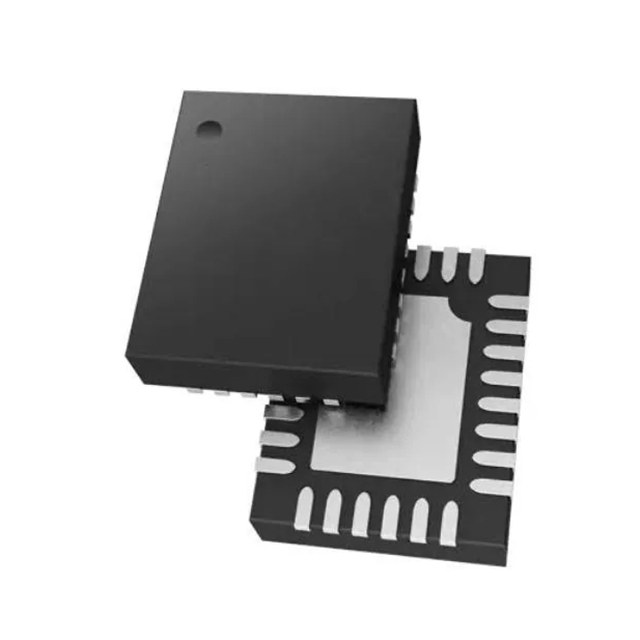

Commodity Model:LT3743EUFD

Trade Name:LED Drivers

Brand:ADI

Particular Year:25+

Package:QFN-28

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3743EUFD
Package
QFN-28
Describe
High-current, synchronous step-down LED driver with three-state control function

Product Description

The LT3743EUFD is a fixed-frequency, synchronous step-down DC/DC controller specifically designed for driving high-current leds. The average current mode controller will maintain the inductor current regulation function within a wide output voltage range of 0V to (VIN - 2V). The following are its core features:

PWM dimming offers a dimming ratio as high as 3000:1

CTRL_SEL dimming offers a dimming ratio of up to 3000:1 between any currents

Three-state current control for color mixing

Current regulation accuracy of ±6%

Input voltage range: 6V to 36V

Average current mode control

The maximum recovery time between any current regulation states is 2μs

Shutdown current <1μA

Output voltage regulation and open-circuit LED protection

Heat resistance enhanced 4mm x 5mm QFN package and 28-pin FE package


By adopting load capacitors that perform switching operations externally, the LT3743EUFD can change the modulated LED current level within a few μs, thereby providing accurate and high-speed PWM dimming between two current levels. The switching frequency can be set within the range of 200kHz to 1MHz through an external resistor on the RT pin.


Other features of the LT3743EUFD include voltage regulation and overvoltage protection functions (set using a voltage divider connected between the output terminal and the FB pin). The overcurrent protection function is provided and set by the CTRL_H pin.


Typical applications

DLP projector

High-power building lighting

Laser diode


Associated Products

Model

Brand

Package

Quantity

Describe

TPS92642QPWPRQ1

TI

HTSSOP-16

3000

Synchronous step-down infrared LED driver for automobiles

TPS92543QPKDRQ1

TI

HTQFP-48

3000

Automotive-grade LED driver with 65V synchronous boost controller

NCV78343DQ0R2G

ON

SSOP-36

3000

LED driver IC, a serial pixel controller for automotive (front) lighting

NCV78514PA0R2G

ON

TSSOP-16

3000

60V, 1.5A intelligent single-channel H-bridge automotive LED driver

TLD1120EL

INFINEON

PG-SSOP-14

5500

360mA, LITIX™ - Automotive LED Driver, PG-SSOP-14

LT3763EFE

ADI

TSSOP-28

3000

60V high current step-down LED driver controller

LT3795EFE

ADI

TSSOP-28

3000

110V LED controller with spread spectrum frequency modulation function

LT3744EUHE

ADI

QFN-36

3000

High-current, synchronous step-down LED driver

LT8391EUFD

ADI

QFN-28

3000

60V, synchronous, four-switch, step-down - step-up LED controller

LT3762EUFD

ADI

QFN-28

3000

LED driver IC 1 output DC DC controller SEPIC, step-down, step-up analog, PWM dimming 28QFN
