The LT8391EUFD is a synchronous 4-switch buck-boost LED controller that can adjust the LED current according to the input voltage which is higher, lower or equal to the output voltage. The proprietary peak-buck/peak-boost current mode control scheme supports adjustable and synchronous fixed-frequency operation from 150kHz to 650kHz, or supports an internal ±15% triangular spread spectrum operation mode that can reduce EMI.

The LT8391EUFD features 4V to 60V input and 0V to 60V output, and supports seamless low-noise conversion between operating areas. The LT8391EUFD is highly suitable for LED driver and battery charging applications in automotive, industrial, and battery-powered systems.

Main features

The four-switch single-inductor architecture allows VIN to be higher, lower or equal to VOUT

Synchronous switch: Efficiency up to 98%

Proprietary peak step-down and peak step-up current modes

Wide VIN range: 4V to 60V

Wide VOUT range: 0V to 60V (51V LED)

±3% LED current accuracy

2000:1 external and 128:1 internal PWM dimming

High-voltage side PMOS PWM switch driver

Integrated bootstrap diode

There is no MOSFET refresh noise during voltage reduction or boost

Adjustable and synchronizable frequency range: 150kHz to 650kHz

The flicker-free extended spectrum is used to achieve low EMI

Open-circuit and short-circuit LED protection with fault reporting function

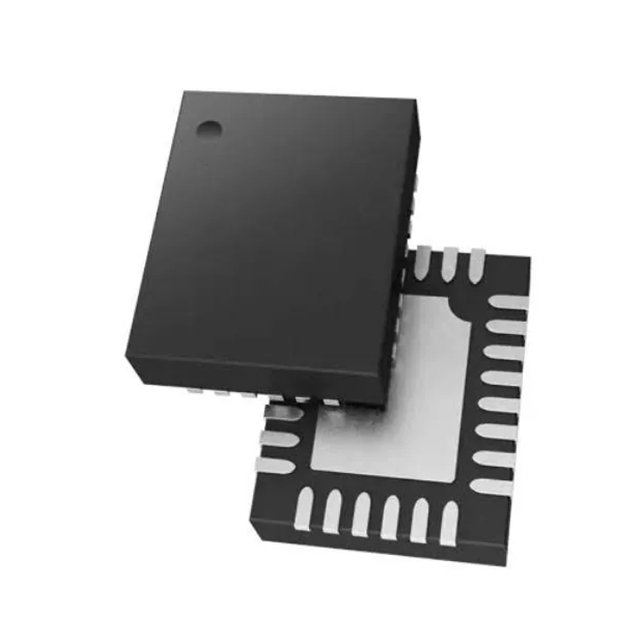

Adopting a 28-pin QFN package with exposed padding (4mm x 5mm)

Passed the AEC-Q100 automotive application certification

Typical applications

Automobile headlamps/running lights

High-power LED lighting
