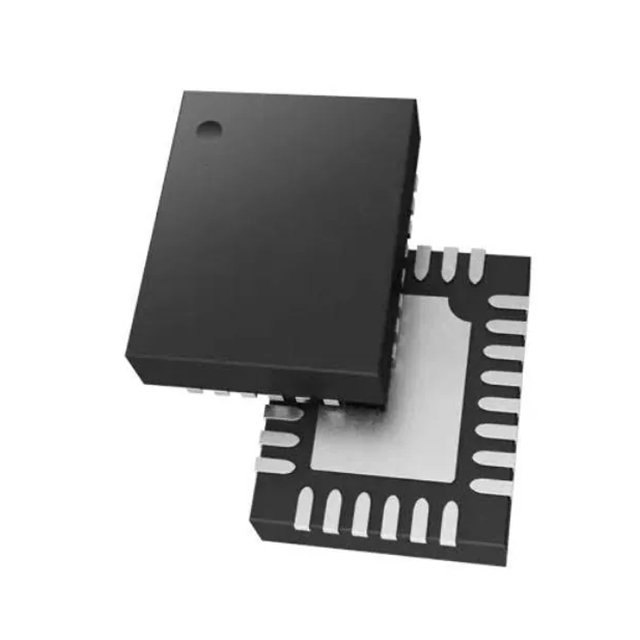

Commodity Model:LT3762EUFD

Trade Name:LED Drivers

Brand:ADI

Particular Year:25+

Package:QFN-28

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3762EUFD
Package
QFN-28
Describe
LED driver IC 1 output DC DC controller SEPIC, step-down, step-up analog, PWM dimming 28QFN

Product Description

The LT3762EUFD is a synchronous DC/DC controller, suitable for use as a constant current source and constant voltage regulator. It adopts a programmable internal PWM dimming signal generator and a synchronous gate driver. The following are its core features and parameters:

3000:1 external PWM dimming

250:1 internal PWM dimming

Wide VIN operating range: 2.5V to 38.5V

Synchronous boost output voltage up to 60V

Spread spectrum modulation suitable for lower EMI

PMOS switch driver suitable for PWM and output disconnection functions

Constant current (±3.5%) regulation

Constant pressure (±2%) regulation

Rail-to-rail LED current sensing: 0V to 60V

Programmable VIN undervoltage lock

Simulated dimming is carried out through two control pins

Operating frequency: 100 KHZ to 1MHz

Implement programmable LED open-circuit protection using OPENLED markers

Short-circuit protection and SHORTLED marking

Drive the LED in boost, SEPIC, buck mode or boost/buck mode configuration

28-pin QFN (4mm × 5mm) bare pad package


The LT3762EUFD is suitable for driving high-current leds with high efficiency and low power loss. Rail-to-rail switch current sensing supports both synchronous boost topology and asynchronous topology (such as SEPIC). The voltage feedback pin serves as the input for multiple LED protection functions while allowing the converter to operate as a constant voltage source.


In addition The LT3762EUFD also includes an integrated DC/DC converter to efficiently generate a regulated 7.5V power supply for the N-channel MOSFET gate driver. The PWM pin controls the PWMTG to drive the P-channel MOSFET, thereby achieving a high PWM dimming range (3000:1) and providing LED overcurrent protection and short-circuit protection boost capabilities.


Typical applications

Industrial and automotive lighting

Precise current-limiting voltage regulator


Associated Products

Model

Brand

Package

Quantity

Describe

TPS92642QPWPRQ1

TI

HTSSOP-16

3000

Synchronous step-down infrared LED driver for automobiles

TPS92543QPKDRQ1

TI

HTQFP-48

3000

Automotive-grade LED driver with 65V synchronous boost controller

NCV78343DQ0R2G

ON

SSOP-36

3000

LED driver IC, a serial pixel controller for automotive (front) lighting

NCV78514PA0R2G

ON

TSSOP-16

3000

60V, 1.5A intelligent single-channel H-bridge automotive LED driver

TLD1120EL

INFINEON

PG-SSOP-14

5500

360mA, LITIX™ - Automotive LED Driver, PG-SSOP-14

LT3763EFE

ADI

TSSOP-28

3000

60V high current step-down LED driver controller

LT3795EFE

ADI

TSSOP-28

3000

110V LED controller with spread spectrum frequency modulation function

LT3744EUHE

ADI

QFN-36

3000

High-current, synchronous step-down LED driver

LT3743EUFD

ADI

QFN-28

3000

High-current, synchronous step-down LED driver with three-state control function

LT8391EUFD

ADI

QFN-28

3000

60V, synchronous, four-switch, step-down - step-up LED controller
