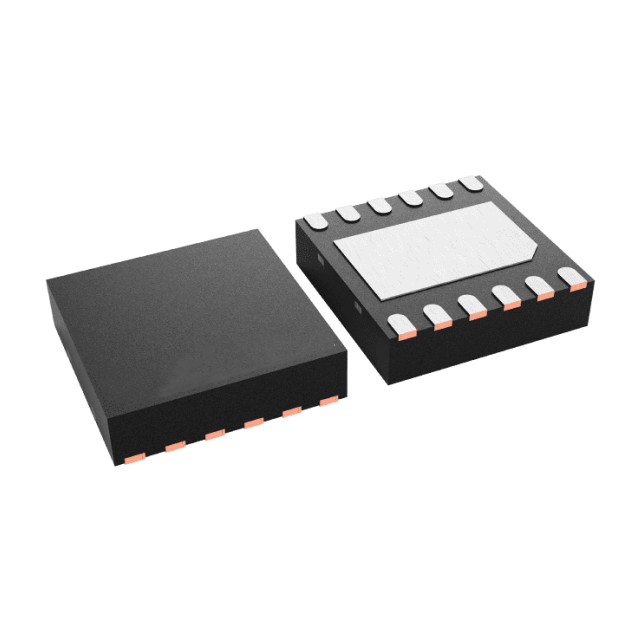

The TPS922055DRRR device is a 4A asynchronous buck LED driver with a wide input range of 4.5V to 65V. The device uses adaptive turn-off time current mode control and intelligent, precise sampling to enable inductive fast dimming (IFD) and high light accuracy. By integrating a low-side NMOS switch, the device not only drives leds, but also charges batteries with high power density and efficiency. The device switch frequency can be configured in the range of 100kHz to 2.2MHz, and has an optional spread frequency function for better EMI performance.

Product Attributes:

Type: DC DC voltage regulator

Topology: depressurize

Internal switch: Yes

Output number: 1

Voltage - Power supply (min) : 4.5V

Voltage - Power supply (Max) : 65V

Voltage - output: 0V ~ 63V

Current - Output/channel: 4A

Frequency: 100kHz ~ 2.2MHz

Dimming: Analog, PWM

Application: Backlight, lighting

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

Package/housing: 12-WFDFN bare pad

Supplier Device package: 12-SON (3x3)
