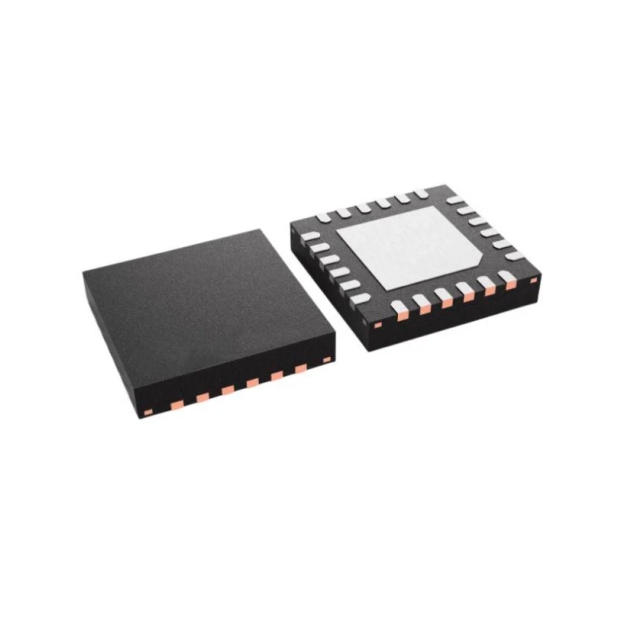

The TLC69612RTWR backlight drivers are a family of LCD locally dimmable backlight drivers compatible with the TLC696x0/TLC696x0-Q1 (scanning MOSFET controllers for 2/4/8 time division multiplexing control). Each device integrates 16 constant-current traps with correspondingly sized SRAMs for luminance storage. The devices are connected via a two-wire serial interface in a daisy-chain topology, supporting up to 1024 devices for more than 32,000 local dimming zones.

Features

● Operating voltage VCC range: 3V to 5.5V

● 16 high-precision constant current traps

● ±2% (typical) channel-to-channel error

● Flexible dimming control

● Global 8-bit maximum current (MC) setting

● Brightness resolution: up to 15 bits

● PWM/Mixed control mode

● High-speed daisy-chain interface

● I/O voltage compatibility: 1.8V/3.3V

● Data transfer rate: up to 20MHz

● High system efficiency

● Adaptive margin voltage control (AHVC)

● Ultra-low device power consumption

● Standby mode: ICC ≤ 200μA

● Normal mode: ICC ≤ 3.5mA

Applications

● LCD local dimming backlighting

● Television

● Monitors

● Laptop computers

● Tablet PCs
