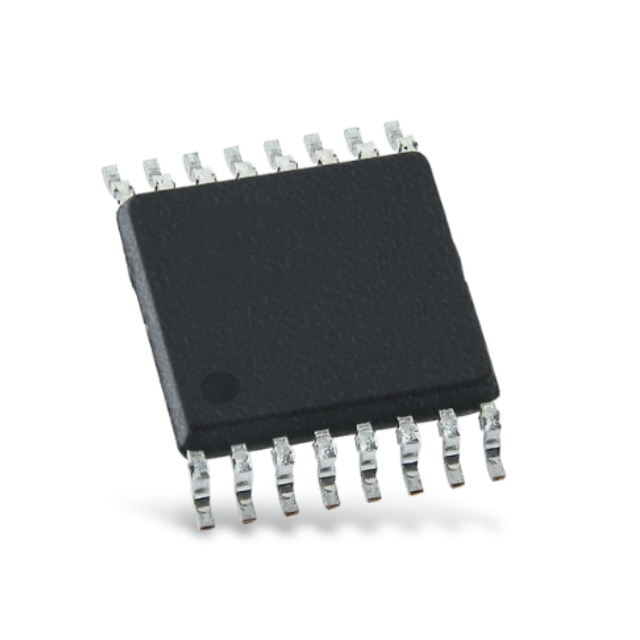

The TLC69604RTWR step-down charge pump converters are switched capacitor step-down DC/DC converters that produce two regulated outputs over a wide input range. The first regulated output is a 5V output generated by connecting directly to the charge pump output. The second regulated output is a 3.3V output generated by a low dropout (LDO) linear post regulator. The converter provides up to 350mA of total output current. Power dissipation is reduced by more than 2W with 12V VIN and maximum load on both outputs.

Features

● Input voltage range: 5.5V to 38V

● 5V and 3.3V fixed outputs independently enabled

● 5V output: 100mA (max)

● 3.3V LDO output: 250mA (max)

● Multi-mode buck charge pump with automatic mode switching (2:1, 1:1)

● Low quiescent current

● 20μA when both outputs are regulated (no load)

● 0.5μA in shutdown mode

● Designed for ISO26262 compliant systems.

● 1.1V reference output for system diagnostics

● Power-on reset and watchdog controller with adjustable timer

● Overcurrent fault protection on each output

● Thermal protection

● Maximum operating junction temperature: 150°C

● Thermally enhanced 16-pin MSOP package

Applications

● Automotive ECU/CAN transceiver power supplies

● Industrial/telecom housekeeping power supplies

● Low power 12V to 5V and 3.3V conversion
