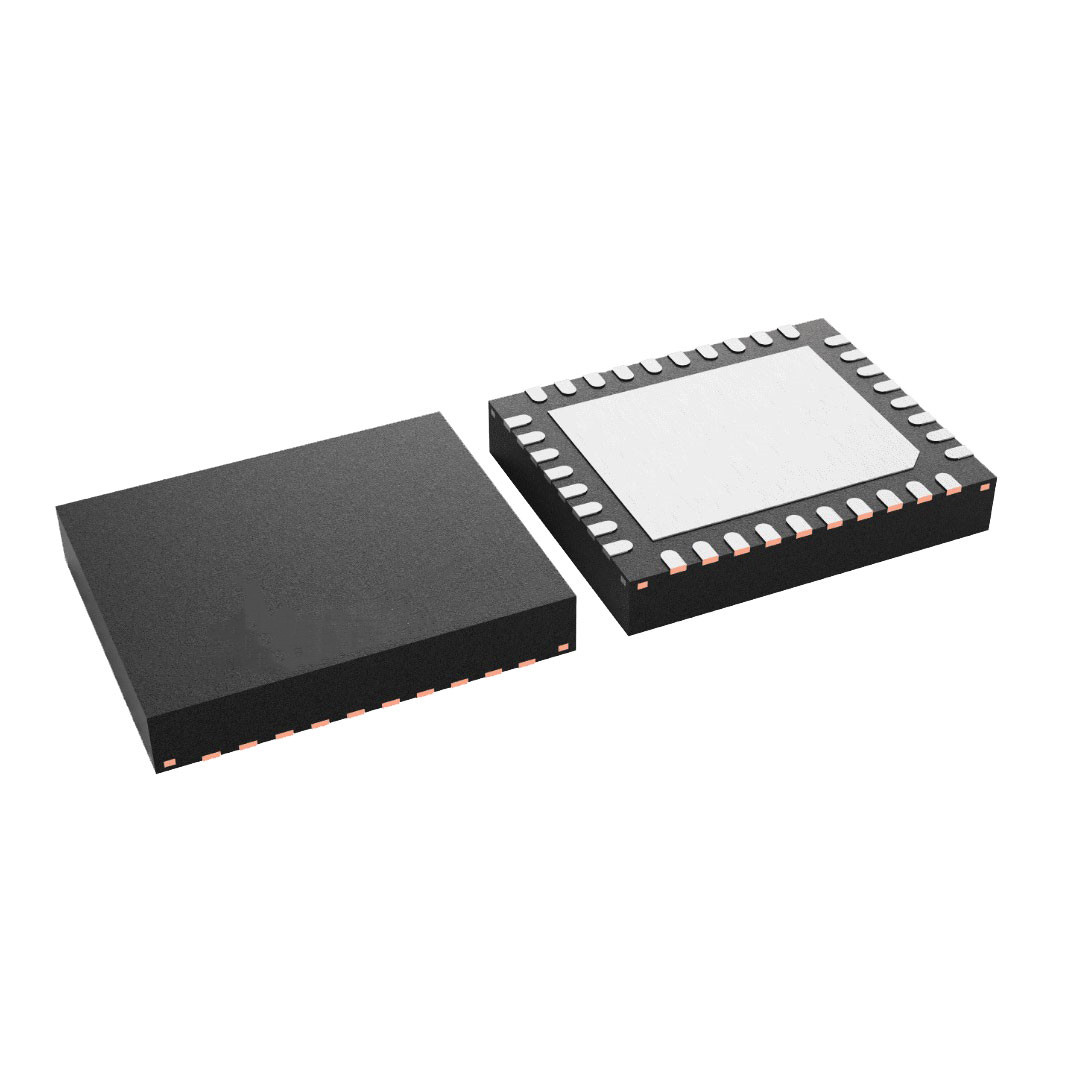

The TPS92402MRRVR LED point controller device can provide pixel-level LED dimming control up to 2.5A within a wide input range of 4.5V to 65V, thus enabling an 8-channel independent lighting solution. The TPS92402MRRVR includes a series (8 in series) of integrated shunt FETs, each of which can provide PWM dimming for a single LED. With the help of a shunt FET string, this device can support a constant current regulator and is suitable for leds connected through a common anode or common cathode.

Key features

Wide input range: 4.5V to 65V

LED common anode or common cathode connection

Eight integrated PWM split FETs

Maximum continuous current of FET: 2.5A

An internal 32MHz oscillator for the PWM generator

Programmable 16-bit >20kHz PWM dimming

SPI interface and adaptive configuration

SPI clock up to 5MHz for data transmission

Star-shaped and Daisy chain connections

One device is used for 8 LED light strings or 2 4-LED light strings

Up to four devices can be stacked for 32 LED light strings

Enhanced EMI performance

Programmable PWM slew rate

Programmable PWM edge movement

Internal charge pump with spread spectrum

Comprehensive protection features

LED open-circuit detection and protection

LED short circuit detection

Open circuit detection of shunt FET

Programmable LED open-circuit voltage

Heat warning

Optional power-saving mode

Used to control the PWM output of the LED driver

Low-power standby mode

VQFN-36 package

Typical applications

Stage and photography lighting

Surgical lighting

Machine vision and IP camera LED arrays

Cold/warm WLED lighting

3D printing

Industrial transportation
