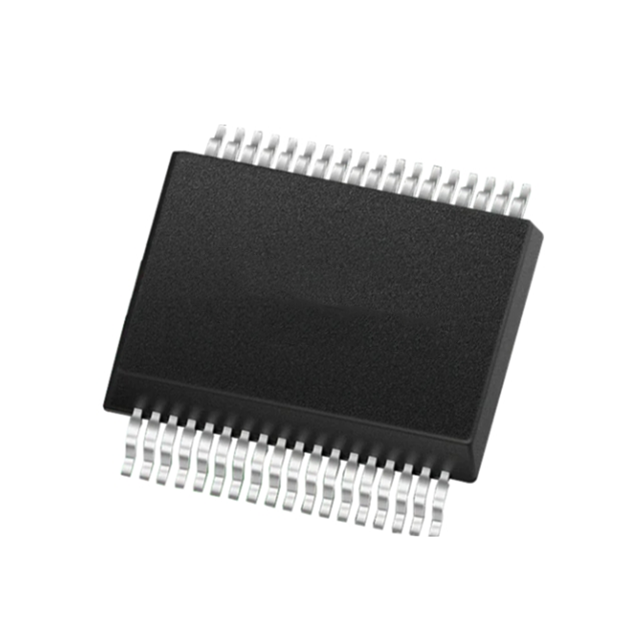

The NCV78343DQ0R2G is a single-chip pixel controller with an embedded switch, used to control individual leds in a series of LED strings. It is specifically designed for automotive dynamic lighting applications, especially for high-current leds.

The NCV78343DQ0R2G pixel controller device receives pixel control parameters from the pixel light ECU and converts the required light patterns or light images into individual pixel dimming data. A pixel controller device can control up to 12 pixels, each with a 1× or 2× 1.4A LED. The maximum voltage of the LED string must be limited to 60V. When it is necessary to control more than 12 pixels, multiple pixel controllers can be combined in one system.

The NCV78343DQ0R2G is connected to the microcontroller via two communication interfaces. Universal Asynchronous receiver Transmitter (UART), supporting local connection or connection with MCU using CAN transceivers and multi-point low-voltage differential signals (M−LVDS).

Specification

Battery power supply voltage range: 4.5V to 40V

Switch differential voltage range: 0V to 10V

LED string voltage range: 0V to 60V

Maximum output current of the step-down switch: 1.4A

PXN communication rate range: 125kb to 1000kb

Ambient temperature range: -40 °C to +125 °C

Thermal resistance from node to exposed pad: 3.5°C/W (typical value)

ESD rated value

±2 kV Human body model (HBM

±500V charging device model (CDM)

In addition, the NCV78343DQ0R2G LED driver is mainly used in the following fields:

Dynamic adaptive drive beam function

Non-glare high beams

Static rotation

Beam shaping

Optical power regulation

The animated welcome function on the signal light

Wiper turn signal
