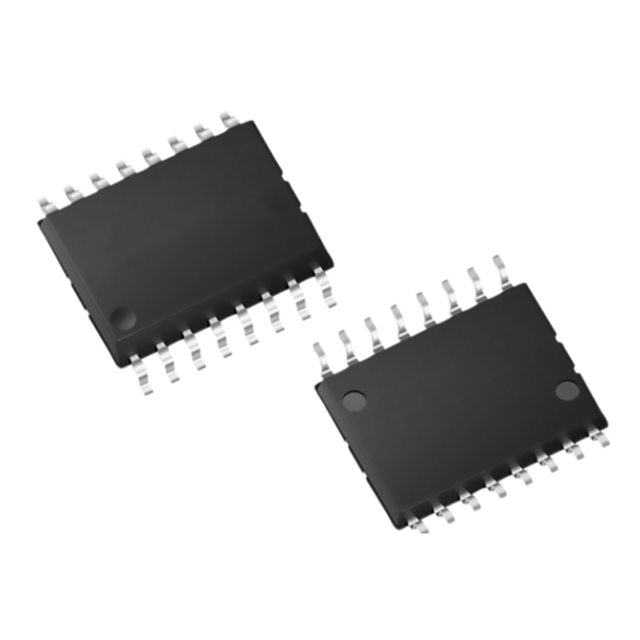

NCV78514PA0R2G is an LED driver for automotive applications, featuring an H-bridge topology and integrating synchronous buck and external asynchronous boost. This topology allows for the design of A single driver for multiple LED loads, subject to the limitations of a maximum power of 20 W, a maximum voltage of 60 V, and a maximum current of 1.5 A. The NCV78514PA0R2G is an ideal choice for those without an MCU setup, featuring intelligent functions such as derating based on input voltage and temperature, diagnosis and error handling, as well as fading.

Key features

Supports applications without an MCU

Comprehensive demotion mechanism

The fixed switching frequency is 400kHz

The input working range is from 5V to 21V

Hot start management is below 9V

The maximum load capacity it can withstand is up to 45V

Output voltage range: Up to 60V

External programmable current ranging from 200mA to 1500mA

Pulse width modulation from 80Hz to 600Hz

400Hz led current dimming frequency

External NTC/PTC for led temperature

Spread spectrum

Status and error mode handling

It complies with the AEC-Q100 standard and has PPAP functionality

Application scenarios

The NCV78514PA0R2G LED driver is mainly applied in LED lighting scenarios such as automotive headlamps and taillights that have strict requirements for high reliability and long lifespan. It can reduce the system BOM cost and improve overall efficiency.
