The TPS92642QPWPRQ1 is a single-chip synchronous step-down LED driver with a wide operating input voltage range of 5.5V to 36V and a 40V tolerance, supporting a continuous load drop of 400 ms. TPS92642QPWPRQ1 has achieved adaptive on-time average current mode control based on inductor valley current detection. Adaptive on-time control provides a nearly constant switching frequency, which can be set between 100 kHz and 2.2 MHz. Inductive current detection and closed-loop feedback can achieve an accuracy better than ±4% over a wide range of inputs, outputs and ambient temperatures.

Main specifications

Type: DC DC voltage regulator

Topology: Voltage reduction

Internal switch: Yes

Output number: 1

Voltage - Power supply (minimum) : 5.5V

Voltage - Power supply (maximum) : 36V

Voltage - Output: -

Current - Output/Channel: 5A

Frequency: 100kHz to 2.2MHz

Dimming: Analog, PWM

Application: General

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

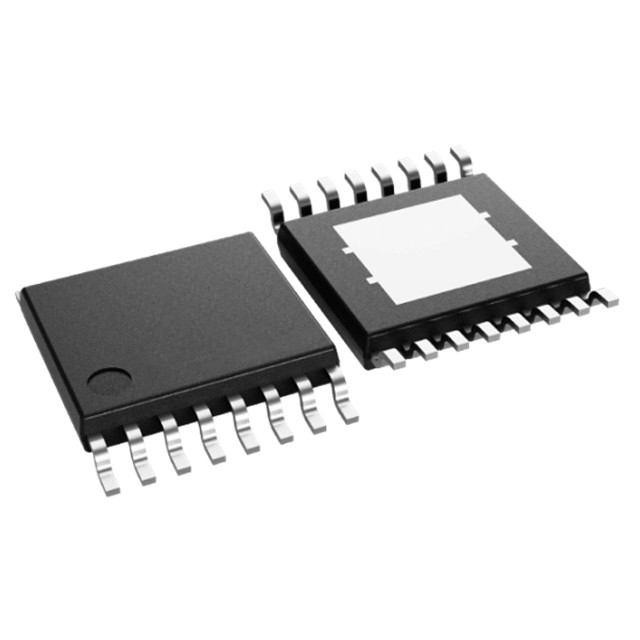

Encapsulation: 16-HTSSOP

In addition, the TPS92642QPWPRQ1 infrared LED driver is equipped with advanced diagnostic and fault protection functions, featuring cycle-by-cycle switching current limiting, bootleg under-voltage, LED open circuit, LED short circuit and thermal shutdown functions. This drive operates with a tolerance of 40V and supports load dumps for a duration of 400ms. The TPS92642QPWPRQ1 driver is suitable for implementing step-down LED driver topologies.

Typical applications

Driver Monitoring System (DMS

IR LED and laser driver
