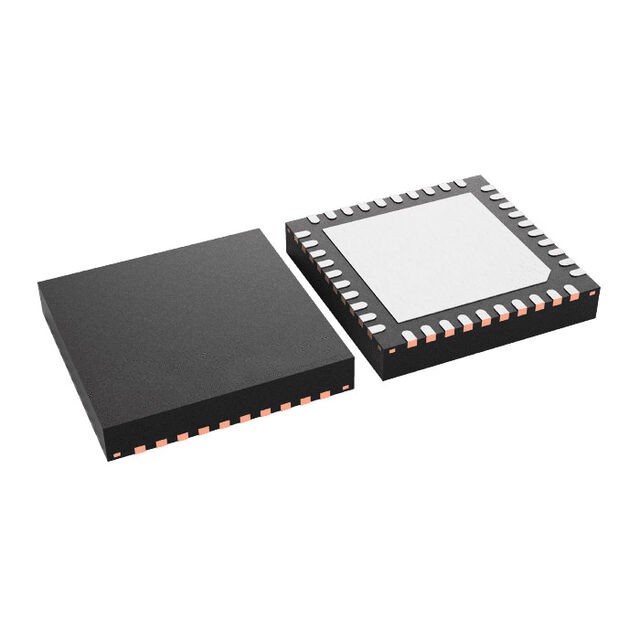

The ADS9228RHAR is a family of 16-bit, high-speed, dual-channel, synchronous sampling analog-to-digital converters (ADCs) with an integrated driver for the ADC input. The integrated ADC driver simplifies the signal chain, reduces power consumption in precision applications, and supports high frequency signals beyond 1MHz. The integrated ADC reference buffer eliminates the need for external decoupling capacitors and is optimized for wide bandwidth applications.

ADS9228RHAR Product Features:

High-speed sample rate: 10MSPS/channel, 146mW/channel

Dual, synchronous sampling

Characteristic Integration:

Integrated ADC Driver

Integrated Precision Reference

Common Mode Voltage Output Buffer

High Performance:

16-bit, No Code Loss

INL: ±0.3LSB. DNL: ±0.3LSB

SNR: 93.9dB

Wide Input Bandwidth (-3dB): 90MHz

Serial LVDS Interface:

SDR and DDR Output Modes

Synchronous Clock and Data Outputs

Wider Operating Temperature Range: -40°C to +125°C

ADS9228RHAR Applications:

Power Analyzers

Source Measurement Units (SMUs)

Marine Equipment

Servo Drive Position Feedback

DC Power Supplies, AC Power Supplies, Electronic Loads
