ADS8661WRUMR: 12-Bit, 1.25MSPS, Single-Channel, Wide-Bandwidth SAR ADC, WQFN-16

Overview:

The ADS8661WRUMR is a family of acquisition systems based on successive-approximation (SAR) analog-to-digital converter (ADC) topologies. These devices feature high-speed, high-precision SAR ADCs and integrated differential analog front-end (AFE) input driver circuits.The ADS8661W includes overvoltage protection circuitry up to ±20V and an on-chip 4.096V reference with very low temperature drift.

ADS8661WRUMR Product Attributes

Number of Bits: 12

Sample Rate (per second): 1.25M

Number of Inputs: 1, 2

Input Type: differential, single-ended

Data Interface: SPI

Configuration: PGA-ADC

Ratio - S/H:ADC: 0:1

Number of A/D Converters: 1

Architecture: SAR

Reference Type: external, internal

Voltage - Powered, Analog: 4.75V ~ 5.25V

Voltage - Powered, Digital: 1.65V ~ 5.25V

CHARACTERISTICS: INTERNAL OSCILLATOR

OPERATING TEMPERATURE: -40°C ~ 125°C

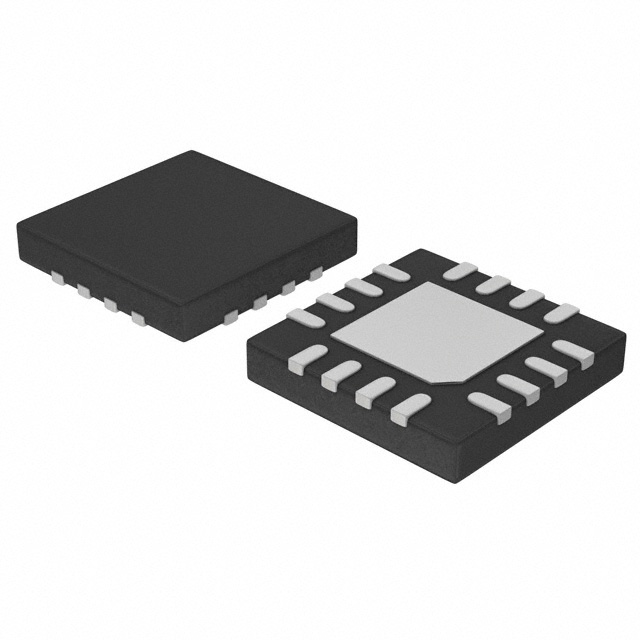

PACKAGING/HOUSING: 16-WQFN Unpadded

SUPPLIER DEVICE PACKAGE: 16-WQFN (4x4)

MOUNTING TYPE: SURFACE MOUNTED

ADS8661WRUMR Application Scenarios

Analog Input Modules

Semiconductor Testing

Servo Drive Control Modules
