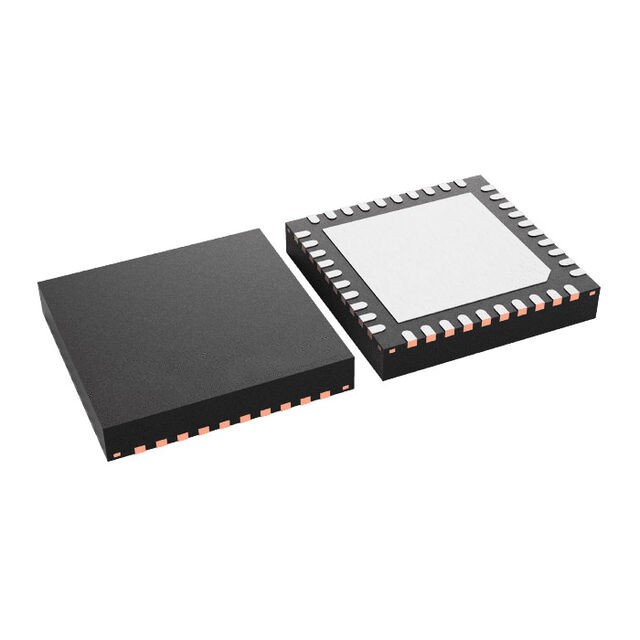

ADS9229RHAR: Dual-channel, synchronous sampling, 16-bit, 20 MSPS SAR ADC, VQFN-40

The ADS9229RHAR is a 16-bit, high-speed, dual-channel, synchronous sampling analogue-to-digital converter (ADC) series featuring an integrated driver for the ADC inputs. The integrated ADC driver simplifies the signal chain, reduces power consumption in precision applications, and supports high-frequency signals exceeding 1MHz. The integrated ADC reference buffer eliminates the need for external decoupling capacitors and is optimised for wideband applications.

ADS9229RHAR Product Features:

High-speed sampling rate: 20MSPS per channel, 230mW per channel

Dual-channel synchronous sampling

Integrated features:

Integrated ADC driver

Integrated precision reference

Common-mode voltage output buffer

High performance:

16-bit, no missing codes

INL: ±0.3 LSB, DNL: ±0.3 LSB

SNR: 93.9 dB

Wide input bandwidth (-3 dB): 90 MHz

Serial LVDS interface:

SDR and DDR output modes

Synchronous clock and data output

Extended operating temperature range: -40°C to +125°C

ADS9229RHAR applications:

Power analysers

Source measurement units (SMUs)

Marine equipment

Servo drive position feedback

DC power supplies, AC power supplies, electronic loads
