The ADS9810RSHR is an eight-channel data acquisition (DAQ) system based on a synchronous sampling 18-bit successive approximation register (SAR) analogue-to-digital converter (ADC). Each channel of the ADS9810RSHR incorporates a complete analogue front end (AFE) with input clamping.

Model: ADS9810RSHR

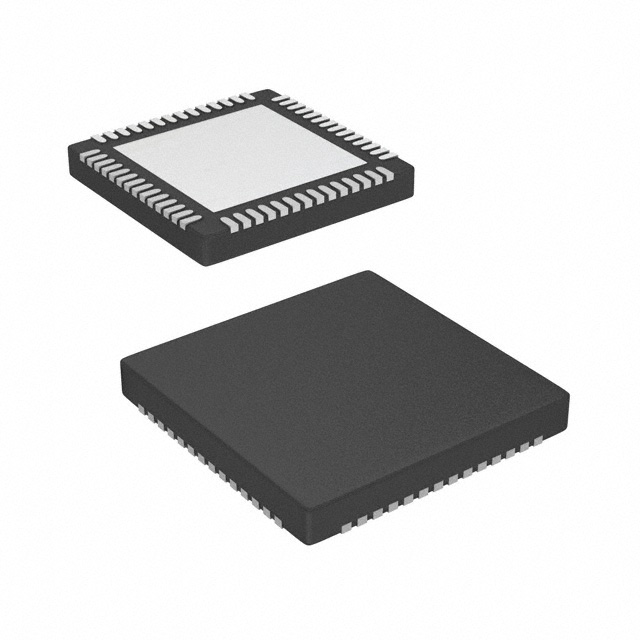

Package: VQFN-56

Type: Analogue-to-digital converter (ADC)

ADS9810RSHR Product Features:

8-channel 18-bit ADC with analogue front end:

Synchronous sampling

Constant 1MΩ input impedance front end

Programmable analogue input range:

±12V, ±10V, ±7V, ±5V, ±3.5V and ±2.5V

Single-ended and differential inputs

Common-mode voltage range: ±12V

Input overvoltage protection: up to ±18V

User-selectable analogue input bandwidth:

22.7kHz and 700kHz

Integrated low-drift precision reference:

ADC reference: 4.096V

2.5V reference output for external circuitry

Excellent AC and DC performance at maximum throughput:

DNL: ±0.35LSB, INL: ±0.8LSB

SNR: 90.3dBFS, THD: -113dB

Power supply:

Analogue and digital: 5V and 1.8V

Digital interface: 1.2V to 1.8V

Temperature range: -40°C to +125°C

The ADS9810RSHR features a 1MΩ input impedance and a programmable gain amplifier (PGA) with user-selectable bandwidth options. The high input impedance characteristic permits direct connection to sensors and transducers, eliminating the need for external driver circuits. The ADS9813 can be configured for ±12V, ±10V, ±7V, ±5V, ±3.5V, and ±2.5V bipolar inputs, along with input common-mode voltages up to ±12V.
