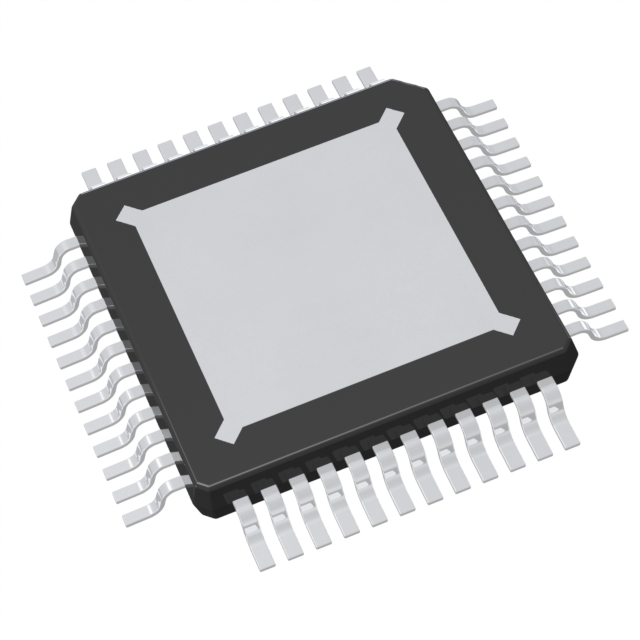

TPS92543QPKDRQ1 is a car grade LED lighting driver IC launched by (TI). It uses HTQFP-48 pin package and supports synchronous boost and buck functions. It is mainly used in automotive headlights, adaptive LED driver modules and other scenarios.

Key parameters

Type: DC-DC controller, DC-DC voltage regulator

Topology: Step-down, step-up

Internal switch: Yes

Output number: 6

Voltage - Power supply (minimum) : 4.5V

Voltage - Power supply (maximum) : 65V

Voltage - Output: 65V

Current - Output/Channel: 2A

Frequency: 100 KHZ to 1MHz

Dimming: Yes

Application: General

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Package: 48-HTQFP (7x7)

Application scenarios

The TPS92543QPKDRQ1 LED driver is suitable for automotive headlamps, dynamic beam headlamp systems and high-power LED matrix management modules, supporting dynamic dimming and low EMI design.
