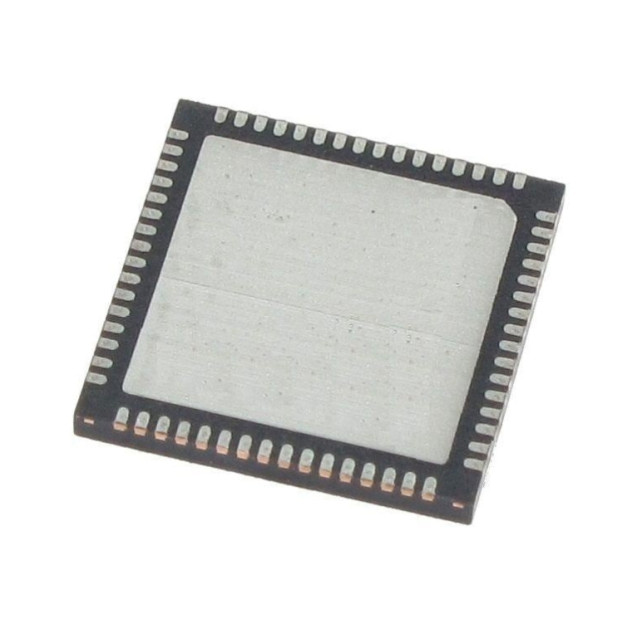

The AD9549ABCPZ device provides synchronization for many systems, including synchronous fiber optic networks (SONET/SDH). The AD9549ABCPZ can generate an output clock synchronized with one of the two external input references. The external reference may contain very poor time jitter or phase noise. During the period of reference loss, or even when both references are lost, the AD9549ABCPZ can continuously generate an effective, clean (low-jitter) output clock by using the numerical control loop and the holdover circuit.

Main features

Flexible benchmark input

Input frequency: 8 kHz to 750 MHz

Two basic inputs

Reference loss indicator

Automatic and manual hold (Holdover)/conversion mode

Automatic/manual hold (Switchover)/switch mode

Smooth A to B output phase transition

The holdover mode has outstanding stability

Programmable 16+1 bit input distributor

Differential HSTL clock output

The output frequency is as high as 750 MHz

Single-ended CMOS output Frequency <50MHz

In addition, the AD9549ABCPZ operates within the industrial temperature range of -40°C to +85°C.

Typical applications

Network synchronization

Reference clock jitter cleared

SONET/SDH clocks, up to OC-192, including forward error correction (FEC)

Stratum 3/3E reference clock

Wireless base station, controller

Wired cable infrastructure

Data communication
