The AD9518-4ABCPZ is a 6-channel output clock generator that offers multi-channel output clock distribution functionality, features sub-picosecond jitter performance, and integrates on-chip PLL and VCO. The tuning frequency range of the on-chip VCO is from 1.45 GHz to 1.80 GHz. An external VCO/VCXO with a maximum frequency of 2.4GHz can also be used.

Key features

Low phase Noise phase-locked loop (PLL

The tuning frequency range of the on-chip VCO is from 1.45 GHz to 1.80 GHz

Optional external VCO/VCXO, up to 2.4GHz

1 differential or 2 single-ended reference inputs

Reference monitoring function

Automatic recovery and manual reference voltage source switching/holding mode

Supports LVPECL, LVDS or CMOS benchmarks up to 250 MHz

Programmable PFD path delay

Optional digital or analog lock detection

3 pairs of 1.6GHz LVPECL output

Each pair of outputs shares 1 to 32 dividers and coarse phase delay

Additive output jitter: 225 fs root mean square value

The output of the skewed pairs between channels is less than 10 ps

All outputs are automatically synchronized when powered on

Manual output synchronization is provided

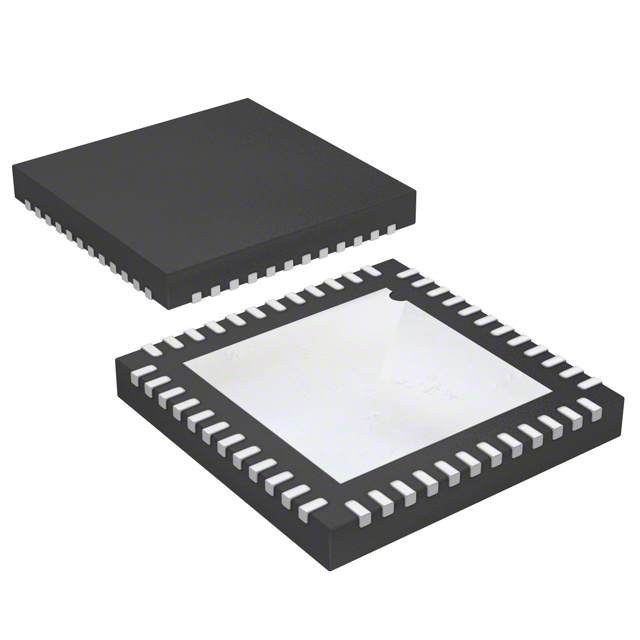

It adopts a 48-pin LFCSP package

The AD9518-4ABCPZ emphasizes low jitter and phase noise to achieve optimal performance of the data converter, while also meeting the strict phase noise and jitter requirements of other applications.

Application scenarios

Low-jitter and low-phase noise clock distribution

10/40/100 Gb/s network line cards, including SONET, Synchronous Ethernet, OTU2/3/4

Forward error correction (G.710

Provide clocks for high-speed ADC, DAC, DDS, DDC, DUC and MxFE

High-performance wireless transceiver

Automatic test equipment (ATE) and high-performance instruments and meters
