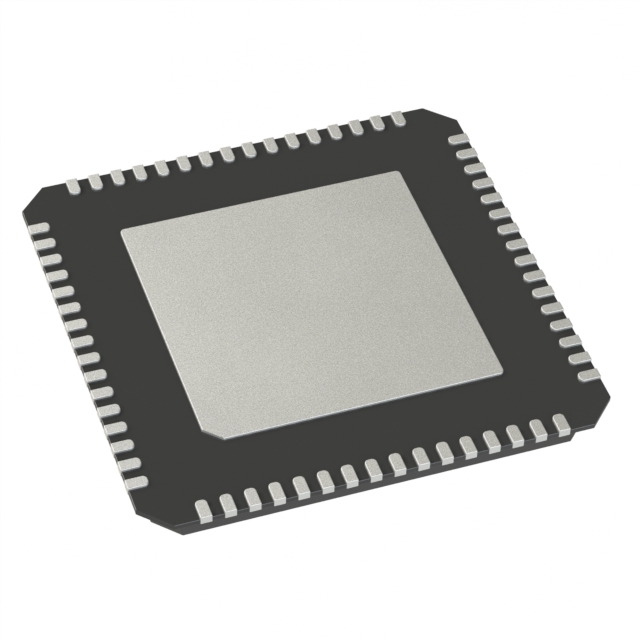

The AD9522-5BCPZ is a highly CMOS output clock generator launched by (ADI), integrating a VCO, clock divider, and up to 24 outputs. It supports automatic hold and flexible reference input circuits, making it suitable for scenarios that require high-precision clock signals.

Technical parameters

Type: Clock generator, fan-out distribution

PLL: Yes

Input: CMOS, LVDS, LVPECL

Output: CMOS, LVDS, LVPECL

Number of circuits: 1

Ratio - Input: Output: 2:12, 2:24

Differential - Input: Output: Yes/Yes

Frequency - Maximum: 2.4GHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 3.135V to 3.465V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Device packaging: 64-LFCSP-VQ (9x9)

The AD9522-5BCPZ serial interface supports SPI and I2C® ports. The EEPROM inside the package can be programmed through a serial interface to store user-defined register Settings for power-on and chip reset. The AD9522-5BCPZ features 12 LVDS outputs (divided into four groups). Any 800 MHz LVDS output can be reconfigured as two 250 MHz CMOS outputs.

Typical applications of AD9522-5BCPZ clock generator

Low-jitter and low-phase noise clock distribution

Clock generation and conversion for SONET, 10Ge, 10G FC and other 10 Gbps protocols

Forward error correction (G.710

Provide clocks for high-speed ADC, DAC, DDS, DDC, DUC and MxFE

High-performance wireless transceiver

Automatic test equipment (ATE) and high-performance instruments and meters

Broadband infrastructure
