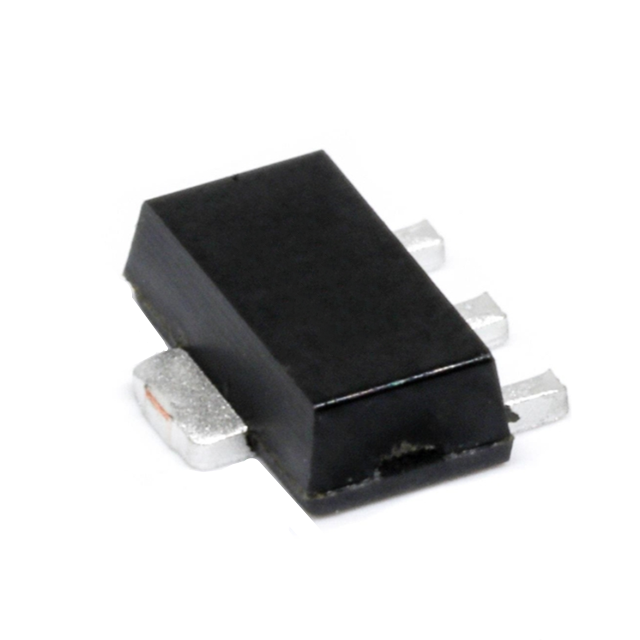

For picture reference, please see the specifications
< >

Commodity Model:ADL5536ARKZ

Trade Name:RF Amplifiers

Brand:ADI

Particular Year:25+

Package:SOT-89-3

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADL5536ARKZ
Package
SOT-89-3
Describe
Rf amplifier 20 MHz to 1.0 GHz intermediate frequency gain module

Product Description

The ADL5536ARKZ is a 20 dB linear amplifier with a maximum operating frequency of 1 GHz, suitable for various cellular, cable TV, military and instrumentation equipment. This amplifier has the following main characteristics:

Fixed gain: 20 dB

Operating frequency range: 20 MHz to 1.0 GHz

The input and output are internally matched at 50 Ω

Integrated bias control circuit

OIP3

45.0 dBm (190 MHz)

49.0 dBm (380 MHz)

Noise coefficient

2.6 dB (190 MHz)

2.7 dB (380 MHz)

P1dB: 19.6 dBm (190 MHz)

5V single power supply

MSL-1 grade SOT-89 package

ESD rated value: ±2 kV (Class 2)

Compatible with the 16 dB gain ADL5535 pin


Among the existing internal matching IF gain modules, the ADL5536ARKZ offers a relatively high dynamic range. This performance can be achieved by simultaneously providing an extremely low noise figure and very high OIP3 characteristics throughout the entire 1 GHz frequency range. The ADL5536ARKZ also offers an extremely flat gain and P1dB throughout the entire frequency range, and it does not change with temperature, power supply or device variations.


The ADL5536ARKZ internally matches 50 Ω in both input and output, making it easy to use in a variety of different applications. It only needs to be configured with an input/output AC coupling capacitor, a power decoupling capacitor and an external inductor to work.


The ADL5536ARKZ is manufactured using the GaAs HBT process, and its ESD rating is ±2 kV (Class 2). This device adopts the MSL-1 grade SOT-89 package, uses exposed pads and has excellent thermal resistance performance.


When powered by a single 5V supply, the power consumption of the ADL5536ARKZ is 105 mA, and its rated temperature range is from -40 °C to +85°C.


The ADL5536ARKZ is also pin-compatible with the 16 dB gain ADL5535. Each amplifier is provided with a fully configured evaluation board.


Associated Products

Model

Brand

Package

Quantity

Describe

ADL5535ARKZ

ADI

SOT-89-3

3000

Rf amplifier 20 MHz to 1.0 GHz intermediate frequency gain module

HMC608LC4

ADI

SMT-24

3000

GaAs pHEMT MEDIUM POWER AMPLIFIER, 9.5 - 11.5 GHz

HMC589AST89E

ADI

SOT-89-3

2500

Radio frequency amplifier WLAN 0HZ-4GHZ SOT89

ABA-31563-TR1G

AVAGO

SOT-363-6

3000

0Hz ~ 3.5GHz, RF Amplifier IC, SOT-363-6

LMH9126IRRLR

TI

WQFN-12

3000

2.3-2.9GHz differential to single-ended low-power amplifier

LMH9135IRRLR

TI

WQFN-12

3000

3.2GHz to 4.2GHz differential to single-ended amplifier

HMC694LP4E

ADI

QFN-24

3000

6 GHz to 17 GHz, Analogue Variable Gain Amplifier, QFN-24

HMC463LP5E

ADI

QFN-32

3000

GaAs MMIC pHEMT Low Noise AGC Distributed Amplifier, QFN-32

AWB7227RM52P8

Skyworks

SMD-14

4880

RF Amplifier 2.11 - 2.17 GHZ 27DBM 7X7 MCM LINEAR SMA

MGA-635P8-TR1G

AVAGO

QFN-8

4000

RF Amplifier IC CDMA, GSM 2.3GHz ~ 4GHz 8-QFN (2x2)
