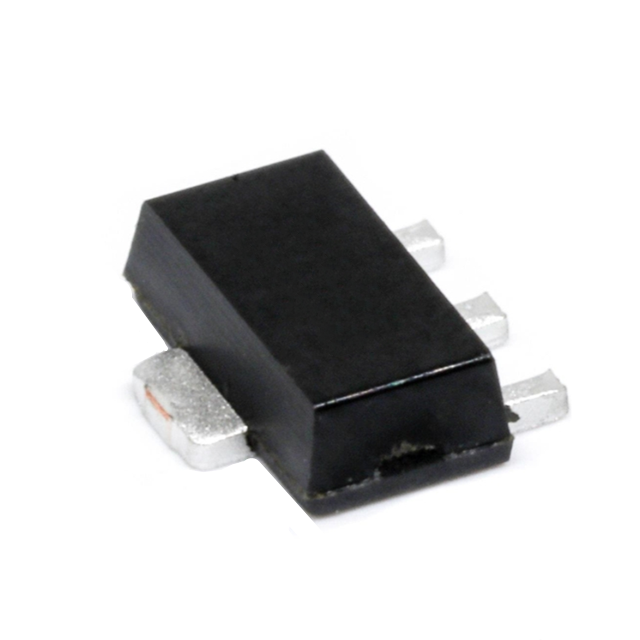

For picture reference, please see the specifications
< >

Commodity Model:HMC589AST89E

Trade Name:RF Amplifiers

Brand:ADI

Particular Year:25+

Package:SOT-89-3

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC589AST89E
Package
SOT-89-3
Describe
Radio frequency amplifier WLAN 0HZ-4GHZ SOT89

Product Description

The HMC589AST89E is an InGaP HBT gain module MMIC SMT amplifier with an operating frequency range of DC to 4 GHz and is packaged in the industry-standard SOT89E. This amplifier can be used as a cascaded 50 Ω RF or IF gain stage and LO or PA driver, with an output power up to +19 dBm P1dB. It is suitable for cellular /3G, FWA, CATV, microwave radio and test equipment applications.


The HMC589AST89E offers a 20 dB gain, +33 dBm output IP3 (1 GHz), and has a power consumption of only 82 mA under a single positive power supply. The HMC589AST89E offers outstanding stability in output power and temperature gain.


Application field

HMC589AST89E is suitable for a variety of RF and microwave applications, including but not limited to:

Cellular /PCS/3G

Fixed wireless and WLAN

Cable television, cable modems and digital broadcasting satellites

Microwave radio and test equipment

IF and RF applications


The key parameters of HMC589AST89E are as follows:

Frequency: 0Hz to 4GHz

P1dB: 17.5dBm

Gain: 15dB

Noise figure: 4.5dB

Radio frequency type: WLAN

Voltage - Power supply: 5V

Current - Power supply: 82mA

Test frequency: -

Installation type: Surface mount type

Packaging/Shell: SOT-89-3
