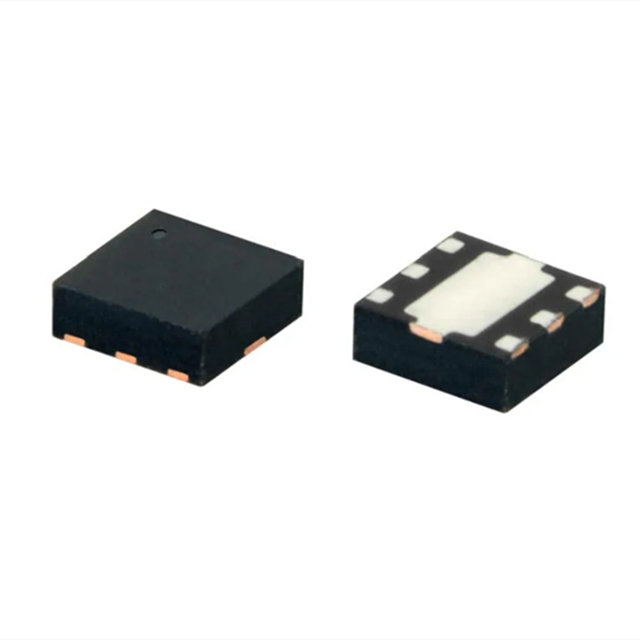

The PMA1-14LN is a low-noise MMIC amplifier based on pHEMT, featuring high IP3 and flat gain. The operating frequency of this amplifier is 0.05 to 10 GHz, featuring a high dynamic range. Its typical noise figure is 1.1 dB, gain is 22 dB, P1dB is +21.5 dBm, and OIP3 is +28.8 dBm. This performance combination makes it an ideal choice for sensitive high dynamic range receiver applications. The PMA1-14LN+ is powered by a single + 6V supply and matches well with 50Ω. It features a very small, low-profile 1.5x1.5mm QFN package, making it easy to integrate into dense circuit board layouts.

Main specifications

Operating frequency: 50 MHz to 10 GHz

Working power supply voltage: 6V

Working power supply current: 61 mA

Gain: 21.1 dB

NF - Noise figure: 1.8 dB

Type: Low Noise Amplifiers

Installation style: SMD/SMT

Packaging/Cabinet: QFN-6

Technology: Si

P1dB - Compression point: 21.5 dBm

OIP3 - Third-order cut-off point: 28.8 dBm

Minimum operating temperature: -45 ° C

Maximum operating temperature: + 85 ° C

Series: PMA1

Input return loss: 20 dB

Isolation decibel: 27 dB

Number of channels: 1 Channel

Pd- Power dissipation: 1.18W

Product type: RF Amplifier

Application scenarios

The PMA1-14LN amplifier is suitable for fields such as 5G MIMO/ backtravel communication, satellite communication, radar systems, and electronic countermeasure defense. Its high dynamic range feature is particularly suitable for scenarios with high requirements for signal sensitivity.
