Trade Name:RF Amplifiers
Brand:TI
Particular Year:25+

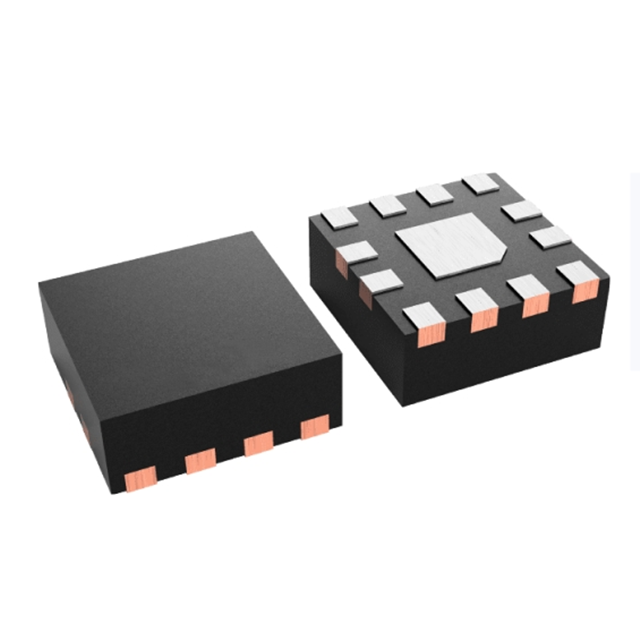

Package:WQFN-12
Delivery Date:New and original
Stock: 3500pcs
The TRF1305B1RPVR is a fully differential RF amplifier with common-mode control, DC to 7.2GHz, 3dB BW, 10dB gain.
Technical Specification
Frequency: 0Hz to 7GHz
P1dB: 15.8dBm
Gain: 10dB
Noise figure: 13.2dB
Radio frequency type: VSAT
Voltage - Power supply: 4.75V to 5.25V
Current - Power supply: 95mA
Test frequency: 1GHz
Installation type: Surface mount type
Package/Shell: 12-WQFN
The TRF1305B1RPVR is an ultra-high performance closed-loop single-channel RF amplifier with a working bandwidth ranging from true DC to over 7GHz. The TRF1305B1RPVR features outstanding performance and can drive high-speed, high-performance ADCs such as the ADC12DJ5200RF and ADC32RF5x through DC or AC coupling interfaces. The TRF1305B1RPVR amplifier is optimized for RF, zero intermediate frequency, complex intermediate frequency and high-speed time domain applications. The TRF1305B1RPVR has been optimized for performance under a fixed gain configuration. If a lower gain is required, please use an external resistor.
Target application
• RF sampling or GSPS ADC driver
• Testing and measurement
• Wireless communication testing
• RF digital converter
• Oscilloscope (DSO)
• High-speed digital converter
• Spectrum analyzer
• Vector Signal Transceiver (VST)
• Mass spectrometry system
• Common mode level conversion
• IQ mixer interface
