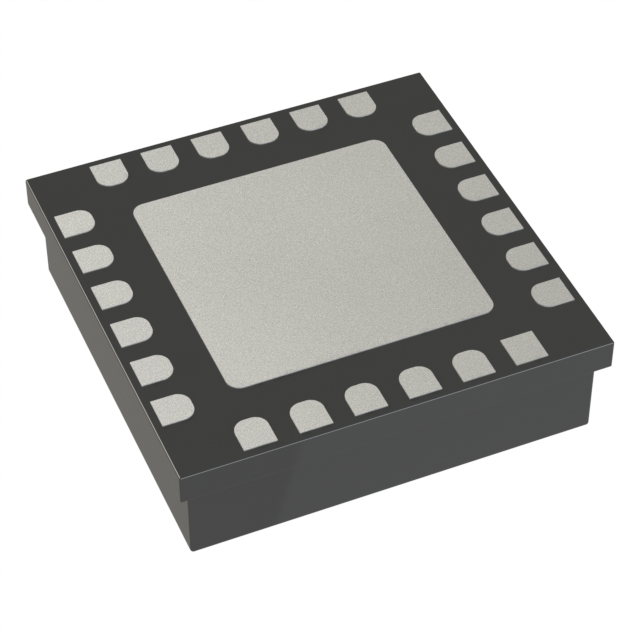

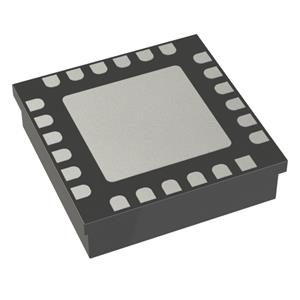

For picture reference, please see the specifications
< >

Commodity Model:HMC608LC4

Trade Name:RF Amplifiers

Brand:ADI

Particular Year:25+

Package:SMT-24

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC608LC4
Package
SMT-24
Describe
GaAs pHEMT MEDIUM POWER AMPLIFIER, 9.5 - 11.5 GHz

Product Description

The HMC608LC4 is a medium power amplifier with a high dynamic range GaAs pHEMT MMIC and adopts a pin-free "lead-free" SMT package. This amplifier offers two working modes: high-gain mode (Vpd pin short-circuited to ground); And the low-gain mode (with the Vpd pin remaining open). The following table shows the electrical specifications of the amplifier operating in the high-gain mode.


This amplifier has an operating range of 9.5 to 11.5 GHz, providing 29.5 dB gain, +27.5 dBm saturation power and 23% PAE (+5V supply voltage). The noise figure is 6 dB, while the output IP3 is +33 dBm. The DC blocking RF I/O is matched to 50 Ω, which is convenient to use. The HMC608LC4 does not require wire soldering and can be manufactured using surface mount technology.

Main characteristics

Output IP3: +33 dBm

Saturation power: +27.5 dBm (23% PAE)

Gain: 29.5 dB

Power supply: +5V (at 310 mA)

50 Ω matched input/output

4x4mm SMT package in compliance with RoHS standards


Application field

HMC608LC4 is suitable for a variety of application scenarios, including:

Point-to-point radio

Point-to-multipoint radio

Military final use
