The F6921AVRI is an ultra-low power, dual-channel, low-noise amplifier (LNA) RFIC, specifically designed for Ku-band satellite communication planar phased array antennas. The perfect combination of low power consumption, low noise, high gain and compact size maximizes the G/T of the antenna array while minimizing the overall system power consumption. The external bias current provides gain control, standby mode and temperature compensation.

The F6921AVRI has the following technical parameters:

Frequency: 10.7GHz to 12.75GHz

P1dB: -5 DBM

Gain: 19dB

Noise figure: -

Radio frequency type: SATCOM

Voltage - Power supply: 0.95V to 1.05V

Current - Power supply: -

Test frequency: -

Installation type: Surface mount type

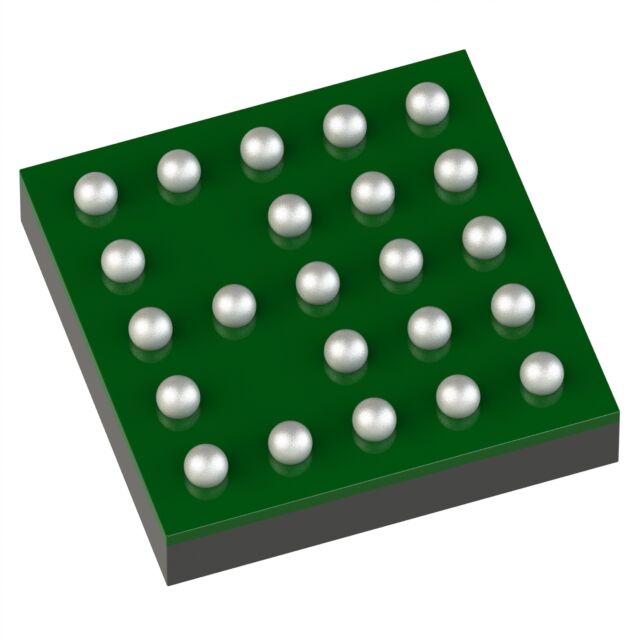

Package/Housing: 23-VFBGA

Supplier device packaging: 23-FCCSP (2.7x2.7)

In addition, the F6921AVRI features two independent gain/phase-matched LNA channels, available in a compact 23-pin, 0.5mm pitch BGA package. All inputs and outputs are single-ended and 50Ω matched, facilitating integration into phased array antenna panels.

Target application

Electronically controlled phased array Antenna (ESA

Aerospace, maritime and mobile satellite communications (SOTM)

Ku-band satellite communication terminal

Communication, electronic warfare (EW) and radar systems
