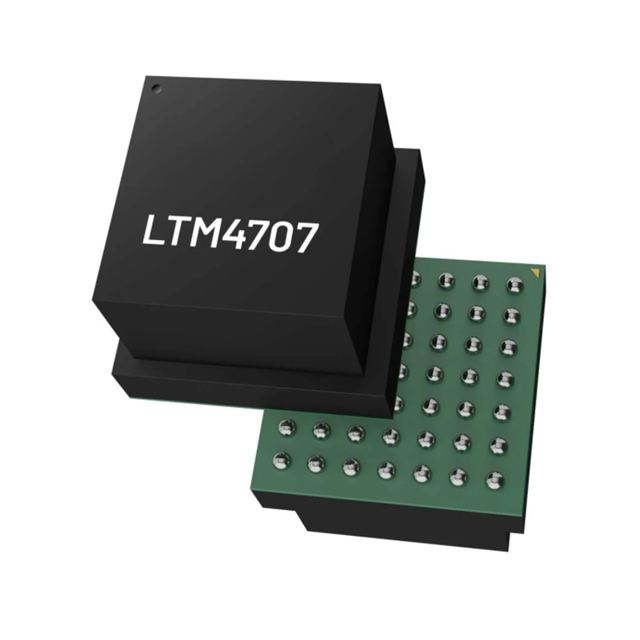

LTM4707EY: 16VIN, 16A ultra-low noise Silent Switcher 3 μModule regulator

1. Overview

The LTM4707EY is a complete 16A step-down Silent Switcher 3 power μModule® regulator in a tiny 6.25mm × 6.25mm × 5.07mm BGA package. This package contains a switch controller, power MOSFET, inductor and supporting components. The working input voltage range of LTM4707EY is 3V to 16V, and it supports an output range of 0.3V to 6V. The output voltage is set through a single resistor, thereby providing unit gain operation within the output range and generating almost constant output noise independent of the output voltage.

2. Technical parameters

Type: Non-isolated PoL module

Output number: 1

Voltage - Input (minimum value) : 3V

Voltage - Input (maximum value) : 16V

Voltage - Output: 1:0.3-6V

Voltage - Output 2: -

Voltage - Output 3: -

Voltage - Output 4: -

Current - Output (maximum value) : 16A

Power (W) : 96 W

Application: ITE (Business)

Feature: Load distribution evenly

Operating temperature: -40°C to 125°C (with derating)

Installation type: Surface mount type

Package/Housing: 49-BGA module

3. Typical application scenarios

The LTM4707EY is applicable to the following scenarios:

Telecommunications, networks and industrial equipment

Rf power supplies, including PLL, VCO, mixer, LNA and PA

Low-noise instruments and meters

High-speed and high-precision data converter
