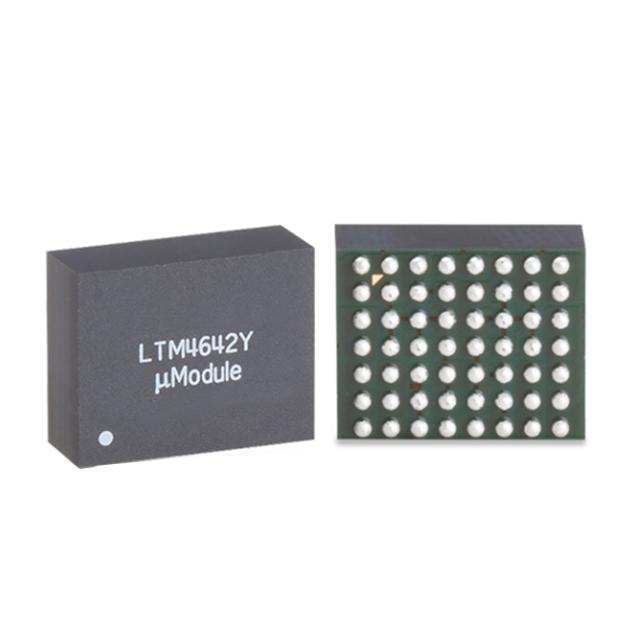

The LTM4642IY is a dual-channel 4A or single-channel 8A step-down miniature module launched by (ADI), integrating a switch controller, power FET, inductor and all supporting components. The LTM4642IY can operate within an input voltage range of 4.5V to 20V (the minimum value when using an external CPWR bias is 2.375V). This voltage regulator supports two outputs with a voltage range of 0.6V to 5.5V, which are set by a single external resistor. The LTM4642IY offers a highly efficient design, providing a continuous current of 4A for each output (with a peak of 5A).

Technical Specification

Type: Non-isolated PoL module

Output number: 2

Voltage - Input (minimum) : 4.5V

Voltage - Input (maximum value) : 20V

Voltage - Output: 1:0.6-5.5V

Voltage - Output 2:0.6-5.5V

Voltage - Output 3: -

Current - Output (maximum value) : 4A, 4A

Application: ITE (Business)

Features: OCP, OVP, UVLO

Operating temperature: -40°C to 125°C

Efficiency: -

Installation type: Surface mount type

Package/Housing: 56-BGA module

LTM4642IY is widely used in the following fields, mainly including:

Telecommunication and network equipment

Server

FPGA power supply
