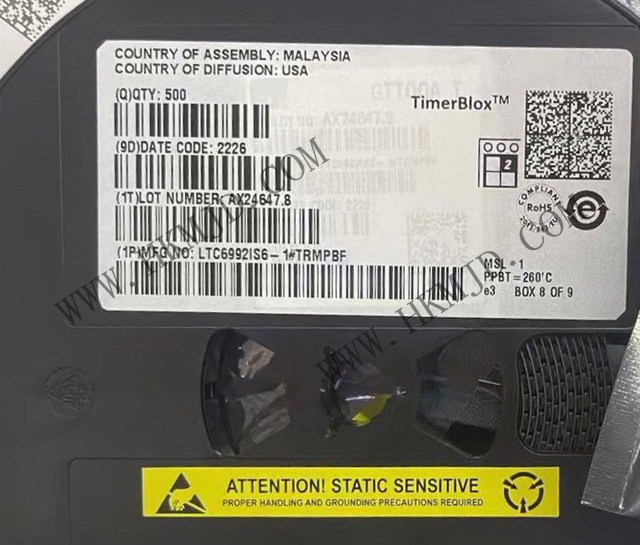

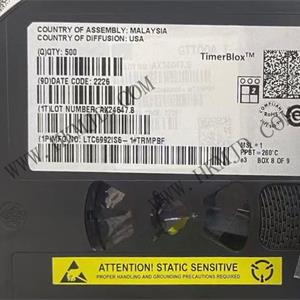

The LTC6992IS6-1 is a silicon oscillator featuring an easy-to-use analogue voltage-controlled pulse width modulation (PWM) function. The LTC6992IS6-1 belongs to the TimerBlox® family of general-purpose silicon timing devices.

A single resistor RSET is responsible for setting the internal main oscillator frequency of the LTC6992. The output frequency is determined by this main oscillator and an internal divider NDIV (programmable to 8 preset values within the range of 1 to 16384).

A voltage between 0V and 1V applied to the MOD pin sets the duty cycle.

The four versions have different minimum/maximum duty cycle ranges. Note that a minimum duty cycle of 0% or a maximum duty cycle of 100% may cause the oscillator to stop under extreme duty cycle settings.

Features

Pulse Width Modulation (PWM) controlled by a simple 0V to 1V analogue input

Four available options define duty cycle limits

Minimum duty cycle: 0% or 5%

Maximum duty cycle: 95% or 100%

Frequency range: 3.81Hz to 1MHz

Configured using 1 to 3 resistors

Maximum frequency error <1.7%

PWM duty cycle error < 3.7% (maximum)

Frequency Modulation (VCO) Function

Single-supply operation from 2.25V to 5.5V

Supply current at 100kHz is 115μA

500µs start-up time

CMOS output drive source/sink current 20mA

Operating temperature range: -55°C to 125°C

LTC6992IS6-1 Product Attributes

Type: Oscillator - Silicon

Frequency: 3.81Hz to 1MHz

Voltage - Supply: 2.25V to 5.5V

Current - Supply: 365 µA

Operating Temperature: -40°C to 85°C

Package/Case: SOT-23-6 Fine, TSOT-23-6

Supplier Device Package: TSOT-23-6

Mounting Type: Surface Mount

Applications

PWM Servo Loop

Heater Control

LED Dimming Control

High Vibration, High Acceleration Environments

Portable and Battery-Powered Devices
