The TPS543A26TRASR is a high-efficiency 18V, 16A synchronous buck converter with an internally compensated, fixed-frequency Advanced Current Mode (ACM) control architecture that generates output voltages from 0.5V to 7V while operating in FCCM mode for extended periods. The device offers high efficiency and operates at switching frequencies up to 2.2MHz, making it suitable for designs that require a small solution size.

TPS543A26TRASR: 4V to 18V Input, 16A Synchronous SWIFT™ Buck Converter in Thermally Enhanced Package

Model No.: TPS543A26TRASR

Package: WQFN-FCRLF-17

Type: Synchronous Buck Converter

Additional Features: Includes High-precision voltage reference, two-wire remote sensing, selectable soft-start time, monotonic start-up to pre-biased output, selectable current limit, adjustable UVLO (via EN pin), and full fault protection.

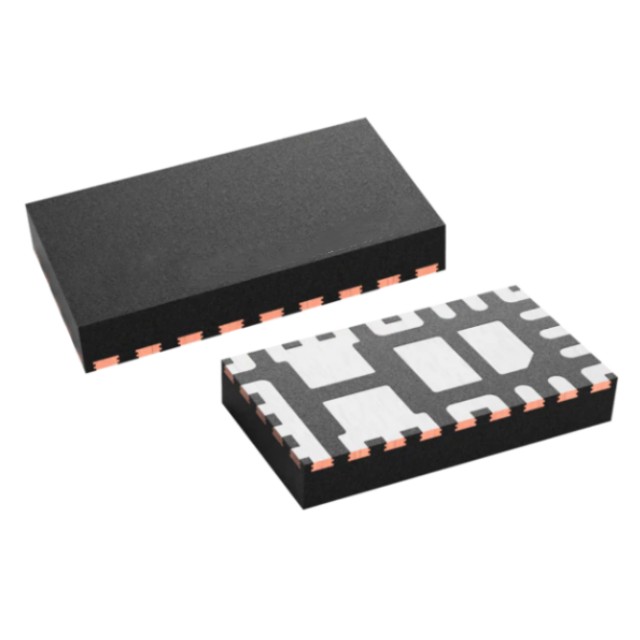

The TPS543A26TRASR is available in a small 2.5mm × 4.5mm HotRod™ WQFN-FCRLF package.

TPS543A26TRASR - Product Features:

Integrated 6.5mΩ and 2mΩ MOSFETs

Input voltage range of 4V to 18V

Fixed-frequency, internally compensated, Advanced Current Mode (ACM) control

0.5V to 7V output voltage range

True differential Remote Sensing Amplifiers (RSAs)

Three optional PWM ramp options to optimise control Three selectable PWM ramp options to optimise control loop performance

Five selectable switching frequencies: 500kHz, 750kHz, 1MHz, 1.5MHz and 2.2MHz

Synchronised to an external clock

0.5V with ±0.5% voltage reference accuracy over the full temperature range

1ms, 2ms, 4ms and 8ms selectable soft-start times

Monotonically starts up to pre-biased output

Selectable current Optional current limit supporting 16A and 12A operation

Enable terminal with adjustable input undervoltage lockout

Power Normal Output Monitor

Output overvoltage, output undervoltage, input undervoltage, overcurrent, and over-temperature protection

-40°C to 150°C operating junction temperature range

2.5mm × 4.5mm, 17-pin WQFN-HR package with 0.5mm pitch TPS543A26TRASR - Applications:

Wireless and wired communications infrastructure equipment

Optical and fibre optic networks

Test and measurement

Medical and healthcare
