Service Telephone:86-755-83294757
Trade Name:Synchronous Buck Converter
Brand:TI
Particular Year:25+
Package:WQFN-9
Delivery Date:New and Original
Stock: 2000pcs

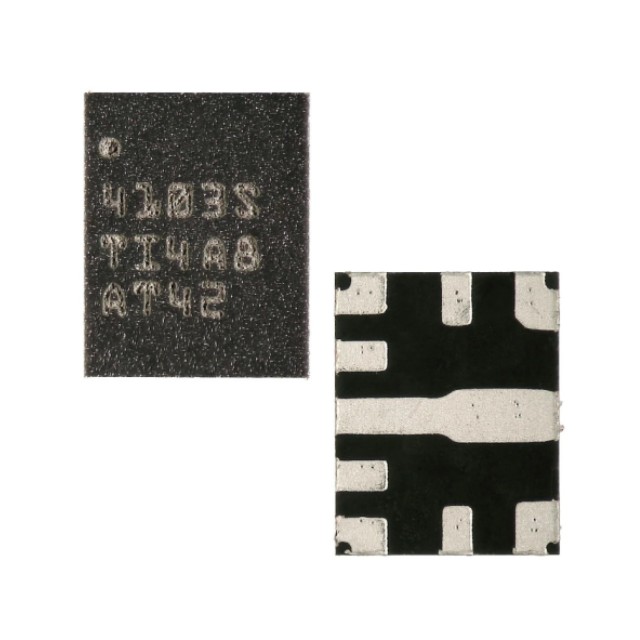

LMR604103SRAKR is a 3V to 36V (42V transient), 1A, synchronous, buck converter designed for industrial applications. The LMR604103SRAKR offers variants with spread spectrum in an ultra-compact, 2.5mm × 2mm, HotRod QFN-9 package, with wettable flanks available, which reduces inductance and achieves low electromagnetic interference (EMI) performance to facilitate qualification of industrial and other noise-sensitive designs.
Feature Of LMR604103SRAKR
Functional Safety-Capable
Documentation available to aid functional safety system design
Wide operating input voltage: 3V to 36V (42V absolute maximum)
Pin programmable output voltage options available in fixed 3.3V/ADJ and 5V/ADJ
Adjustable output voltage range from 1V to 20V
Low minimum tON (30ns typical)
Optimized for low electromagnetic interference (EMI) requirements:
Low inductance HotRod™ QFN package
Advanced spread spectrum options available
Programmable switching frequency from 200kHz – 2.2MHz
FPWM, PFM, or external frequency synchronization available
Ultra-low quiescent current
Shutdown current: 0.65µA
Standby current: 5µA
Designed for scalable power supplies
Pin compatible with LMR60406, LMR60420, LMR60430, and LMR60440
Power-Good output for power sequencing
Applications Of LMR604103SRAKR
Industrial transportation
Factory automation and control
Motor drives
