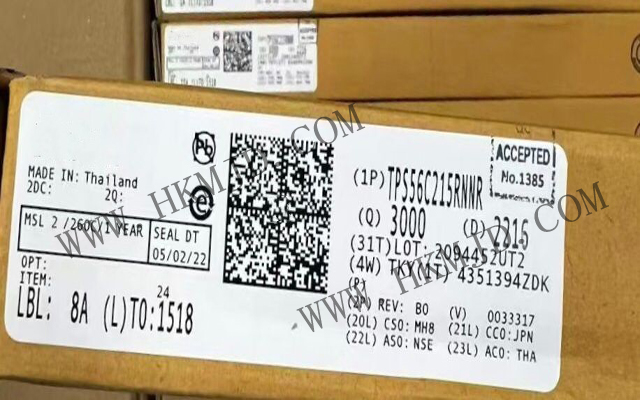

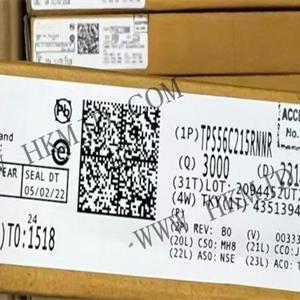

For picture reference, please see the specifications
< >

Commodity Model:TPS56C215RNNR

Trade Name:Synchronous Buck Converter

Brand:TI

Particular Year:22+

Package:VQFN-18

Delivery Date:New and Original

Stock: 9000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TPS56C215RNNR
Package
VQFN-18
Describe
3.8V to 17V, 12A synchronous SWIFT™ buck converter with D-CAP3 control

Product Description

The TPS56C215RNNR is a compact, single-chip 12A synchronous buck converter featuring an adaptive on-time D-CAP3 control mode. The device integrates a low RDS(on) power MOSFET, offering simplicity, ease of use, and high efficiency with minimal external components, making it ideal for space-constrained power systems. Competitive features include highly accurate reference voltage, fast load transient response, automatic jump mode operation for light load efficiency, adjustable current limit, and no external compensation required. Forced continuous conduction mode helps meet the stringent voltage regulation accuracy requirements of high-performance DSPs and FPGAs.


The TPS56C215RNNR is housed in a thermally enhanced 18-pin HotRod QFN package and is designed to operate over a junction temperature range of -40°C to 150°C.


TPS56C215RNNR Features

• Integrated 13.5mΩ and 4.5mΩ MOSFETs

• Supports 12A continuous IOUT

• 4.5V startup (no 5.0V external bias)

• Reference voltage of 0.6V ±-1% across the entire temperature range

• Output voltage range from 0.6V to 5.5V

• Supports ceramic output capacitors

• D-CAP3™ control mode for fast transient response

• Optional Forced Continuous Conduction Mode (FCCM) for narrow output voltage ripple, or automatic Eco-Mode switching for high light-load efficiency

• Selectable FSW of 400kHz, 800kHz, and 1.2MHz

• Monotonic startup to pre-biased output

• Two adjustable current limit settings with intermittent restart functionality

• Optional 5V external bias for improved efficiency

• Adjustable soft-start with a default soft-start time of 1ms

• Operating junction temperature range from –40°C to 150°C

• Compact 3.5mm × 3.5mm HotRod™ QFN package

• Pin-to-pin compatible with the 8A TPS568215

• Supported in the WEBENCH® design tool


TPS56C215RNNR Technical Specifications

Input voltage range: 3.8V to 17V

Output voltage range: 0.6V to 5.5V

Output current: 12A

Switching frequency: 400kHz, 800kHz, 1.2MHz

Package type: 18-pin VQFN-HR

Operating temperature range: -40°C to 150°C


TPS56C215RNNR Applications

• Servers, cloud computing, storage

• Telecommunications and networking, point-of-load (POL)

• IPC, factory automation, PLC, test and measurement

• High-end DTV
