LMR51460FSQDRRRQ1: Automotive Grade 36V, 6A Synchronous Buck Converter with Low IQ

Model: LMR51460FSQDRRRQ1

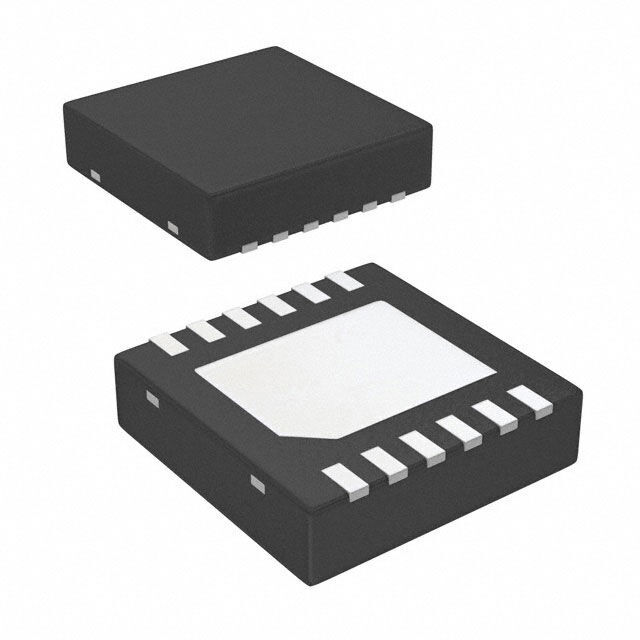

Package: WSON-12

Type: Synchronous Buck Converter

The LMR51460FSQDRRRQ1 is an easy-to-use wide VIN synchronous buck converter capable of driving up to 6A of load current. With a wide input voltage range of 4V to 36V, the device is suitable for a variety of industrial applications where power is regulated from an unregulated source.

The LMR51460FSQDRRRQ1 has an adjustable switching frequency that can be adjusted from 200kHz to 1MHz with an external resistor, providing flexibility to optimise efficiency or external component size.

The LMR51460FSQDRRRQ1 has built-in protection features such as cycle-by-cycle current limiting, intermittent-mode short-circuit protection, and thermal shutdown triggered by excessive power consumption.The LMR51460FSQDRRRQ1 is available in a WSON-12 package.

LMR51460FSQDRRRQ1 - Product Attributes:

Function: Step-Down

Output Configuration: Positive

Topology: Step-Down

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min.): 4V

Voltage - Input (Max.): 36V

Voltage - Output (Min./Fixed): 0.8V

Voltage - Output ( Max): 28V

Current - Output: 6A

Frequency - Switching: 200kHz ~ 1MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Case: 12-WFDFN Unpopulated Pad

Supplier Device Package: 12-WSON (3x3)
