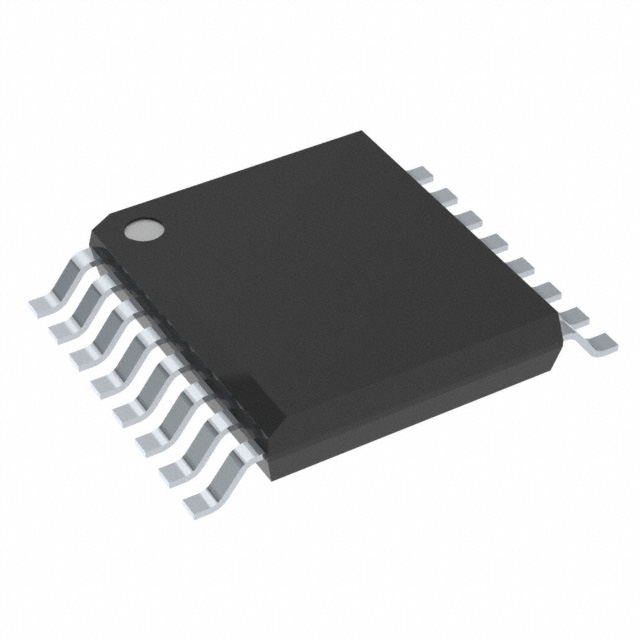

ISO7741QDBQRQ1 is high performance, quad-channel digital isolators. It provide high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. The device come with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption.

Product Features

100 Mbps data rate

Robust isolation barrier:

– >100-year projected lifetime at 1500 VRMS working voltage

– Up to 5700 VRMS isolation rating

– Up to 12.8 kV surge capability

– ±100 kV/μs typical CMTI

Wide supply range: 2.25 V to 5.5 V

2.25V to 5.5V level translation

Low power consumption, typical 1.5 mA per channel at 1 Mbps

Low propagation delay: 10.7 ns typical (5V Supplies)

Robust electromagnetic compatibility (EMC)

– System-level ESD, EFT, and surge immunity

– ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier

– Low emissions

Applications

Hybrid, electric and powertrain system (EV/HEV)

– Battery management system (BMS)

– On-board charger

– Traction inverter

– DC/DC converter

– Inverter and motor control
