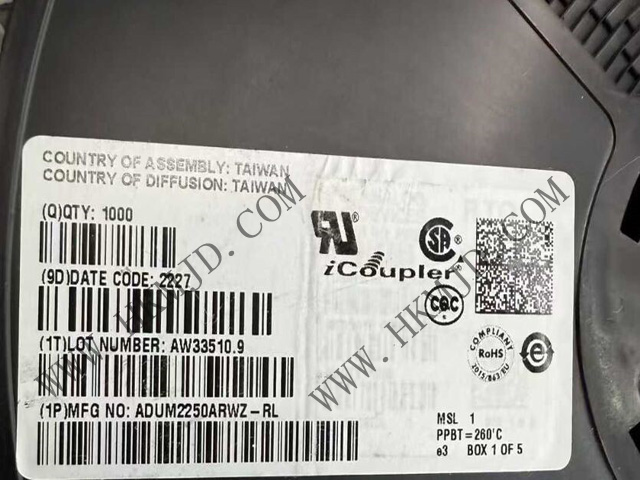

For picture reference, please see the specifications
< >

Commodity Model:ADUM2250ARWZ

Trade Name:Digital Isolator

Brand:ADI

Particular Year:22+

Package:SOIC-16

Delivery Date:New and Original

Stock: 6000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADUM2250ARWZ
Package
SOIC-16
Describe
I2C Digital Isolator 5000 Vrms 2 Channels 1 Mbps 25 kV/µs CMTI 16-SOIC (0.295", 7.50 mm wide)

Product Description

The ADUM2250ARWZ is a hot-swappable dual-channel I²C® digital isolator that uses iCoupler® magnetic isolation technology to provide 5 kV isolation voltage, making it suitable for applications such as industrial communications, power management, and automotive electronics. This device does not require separation of I²C signals, enabling direct isolated communication and simplifying system design.


ADUM2250ARWZ Product Features

Bidirectional I²C Communication: Supports bidirectional data transmission without the need to split I²C signals into separate transmit and receive signals.

Hot-Swap Capability: Built-in hot-swap circuitry prevents data interference when a passive card is inserted into an active bus.

High Isolation Voltage: Provides up to 5000 Vrms of electrical isolation capability.

Low power consumption: Low operating current, suitable for battery-powered or low-power systems.

Wide operating voltage range: Supports power supply voltages from 3.0 V to 5.5 V.

High data rate: Supports data transfer rates up to 1 Mbps.

High noise immunity: Features 25 kV/µs common-mode transient immunity (CMTI) to ensure reliability in high-noise environments.

Compact packaging: Uses a 16-pin wide-body SOIC package to save space.


ADUM2250ARWZ Technical Specifications

Number of channels: 2 channels

Isolation voltage: 5000 Vrms

Data rate: 1 Mbps

Operating voltage range: 3.0 V to 5.5 V

Operating temperature range: -40°C to +105°C

Package type: 16-SOIC (wide body)

Propagation delay: Maximum 120 ns

Pulse width distortion: Maximum 145 ns

Current sink capability: 30 mA


ADUM2250ARWZ Applications

I2C, SMbus, or PMBus interface isolation

Multi-level I2C interface

Power supply

Network

Power over Ethernet (PoE)
