The DRV8906QPWPRQ1 is a pin-to-pin compatible integrated multi-channel half-bridge driver with 6 half-bridges. The device has a low on-state resistance (RDS(ON)) for improved thermal performance during high current operation. The device is capable of driving brush direct current (BDC) motors or stepper motors in independent, sequential or parallel mode.

Product Attributes:

Output Configuration: Half bridge (6)

Application: DC motor, general purpose

Interface: Logic, PWM, SPI

Load type: Inductance, capacitance, resistance

Technology: MOSFET (Metal oxide)

On-resistance (typical) : 750 milliohm LS, 750 milliohm HS

Current - Output/channel: 6A

Current - Peak output: -

Voltage - Power supply: 3V ~ 5.5V

Voltage - load: 3V ~ 5.5V

Operating temperature: -40°C ~ 150°C (TJ)

Features: Charging pump, controlled voltage and swing rate

Fault protection: Overcurrent, overvoltage, UVLO

Mounting type: Surface mount type

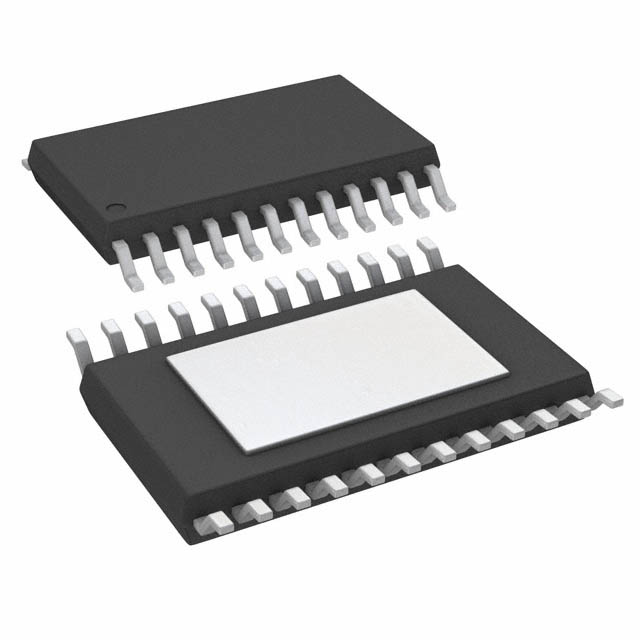

Package/housing: 24-PowerTSSOP (0.173", 4.40mm wide)

Supplier device package: 24-HTSSOP

Basic product number: DRV8906

Typical applications:

• HVAC wing DC motor

• Side mirror adjustment and rearview mirror folding

• LED Applications

• Multi-brush DC motor and solenoid valve
