Trade Name:Motor Drivers, Controllers
Brand:INFINEON
Particular Year:25+
Package:TSDSO-14
Delivery Date:New and original
Stock: 2500pcs

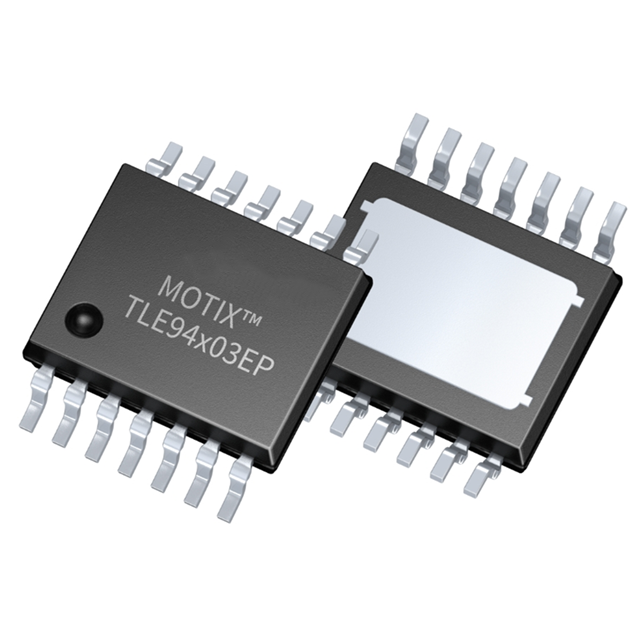

The TLE94003EP is a protected trix half-bridge driver specifically designed for driving small and medium-sized DC motors in automotive applications, such as rearview mirror adjustment or DC motor control of heating, ventilation and air conditioning (HVAC) valves. This product is one of the series of products. This series of products offers half-bridge drivers with 3 to 12 outputs, featuring either a direct interface or a SPI interface. The half-bridge driver is designed to drive the DC motor load in series. Control the forward (cw), reverse (ccw), braking and high-impedance working modes through the direct interface. It can provide diagnostic functions such as short circuit, power failure and over-temperature detection. Combined with an extremely low static current
TLE94003EP is highly attractive in the automotive application field. The precise and compact heat dissipation pad package PG-TSDSO-14 provides excellent thermal performance and saves PCB board space and cost.
Its main characteristics:
Three half-bridge power outputs
Ultra-low power consumption in sleep mode
3.3V/5V compatible input with hysteresis
All outputs have overload and short-circuit protection
Direct interface for control and diagnosis
Over-temperature protection
Overvoltage and undervoltage locking
Cross-current protection
The potential applications of TLE94003EP
x-y adjustment of the rearview mirror
HVAC valve DC motor
Monostable and bistable relays
