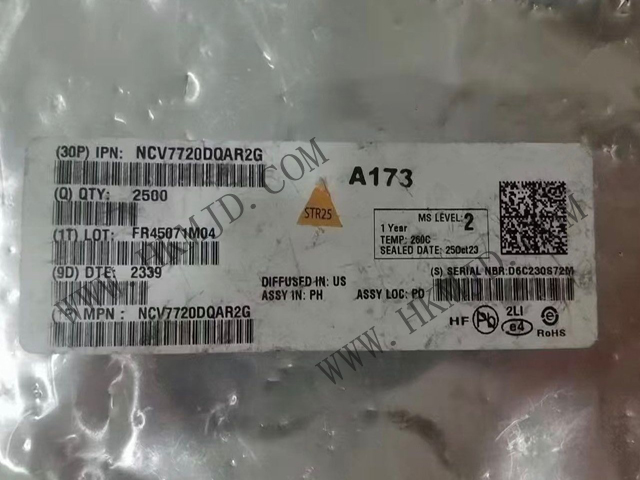

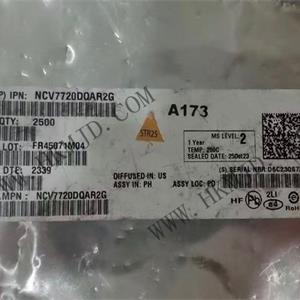

The NCV7720DQAR2G Deca is a ten channel half−bridge driver with protection features designed specifically for automotive and industrial motion control applications. The product has independent controls and diagnostics, and the drivers can be operated in forward, reverse, brake, and high impedance states. The device is controlled via a 16 bit SPI interface and is daisy chain compatible.

Features Of NCV7720DQAR2G

• Low Quiescent Current Sleep Mode

• High−Side and Low−Side Drivers Connected in Half−Bridge Configurations

• Integrated Freewheeling Protection (LS and HS)

• 0.55 A Peak Current

• RDS(on) = 1.0  (typ)

• 5 MHz SPI Communication

• 16 Bit Frame Error Detection

• Daisy Chain Compatible with Multiple of 8 bit Devices

• Compliance with 3.3 V and 5 V Systems

• Undervoltage and Overvoltage Lockout

• Discriminated Fault Reporting

• Over Current Protection

• Over−temperature Protection

• Underload Detection

• Exposed Pad Package

• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

• This is a Pb−Free Device

Product Attributes Of NCV7720DQAR2G

Type: Half-bridge

Output current: 550 mA

Operating power supply current: 1.5 mA

Minimum operating temperature: -40°C

Maximum operating temperature: +125°C

Mounting style: SMD/SMT

Package/housing: SSOP-24

Number of Outputs: 10 Outputs

Operating Frequency: 5 MHz

Series: NCV7720

Supply Voltage - Maximum: 28 V

Supply Voltage - Minimum: 5.5 V

Typical Applications Of NCV7720DQAR2G

• Automotive

• Industrial

• DC Motor Management for HVAC Application
