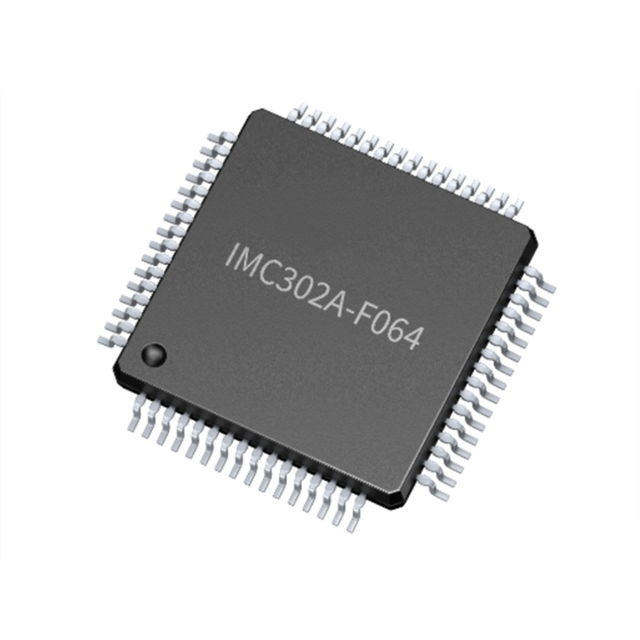

For picture reference, please see the specifications
< >

Commodity Model:IMC302A-F064

Trade Name:Motor Drivers, Controllers

Brand:INFINEON

Particular Year:25+

Package:LQFP-64

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IMC302A-F064
Package
LQFP-64
Describe
PMSM/BLDC motor & PFC controller with additional 32-bit microcontroller

Product Description

The IMC302A-F064 motor control IC is a highly integrated IC for controlling variable-speed motor control systems and is equipped with a user-programmable microcontroller. These ics integrate the hardware, software and user programs required to control permanent magnet synchronous motors (PMSM). The IMC302A-F064 provides high flexibility for motor control systems with lower system and development costs. In addition, this product adopts dual-core computing and is equipped with a motion control engine (MCE) and a user application controller (MCU) based on Arm® Cortex®-M0.


The IMC302A-F064 has the following main characteristics:

Highly flexible combination

Ready-to-use motors and PFC controllers

Industry-standard microcontroller

iMOTION™ Motion Control Engine (MCE 2.0)

A field-verified computing engine for efficient sinusoidal motor control

Single-leg or outrigger diversion

No sensor or optional Hall support

Integrated protection function

Integrated microcontroller (MCU

Industry standard Arm® Cortex-M0® core

Flexible peripheral devices and communication interfaces

MCE-MCU communication interface

High-speed serial links and protocols

Configuration, control, reporting

Support functional safety (IEC 60730, Class B)


Potential applications of IMC302A-F064 motor control IC:

• Small and large household appliances

Fans, pumps, compressors

• Universal variable speed drive


Associated Products

Model

Brand

Package

Quantity

Describe

IMC101T-F06

INFINEON

LQFP-64

2000

Motor driver simulation, PWM PG-LQFP-64

IMC101T-F048

INFINEON

LQFP-48

2500

Motor driver CMOS simulation, PWM PG-LQFP-48

L6482HTR

ST

HTSSOP38

2500

Bipolar Motor Driver Power MOSFET SPI 38-HTSSOP

DRV8841PWPR

TI

HTSS0P-28

50000

45V, 2.5A Bipolar Stepper or 2-Way H-Bridge Motor Driver IC with Current Regulation and PWM Control

LB11600JV-TLM-E

ON

SSOP-30

1000

Motor Driver PWM 4.5V-14V 30-SSOP

DRV110APWR

TI

TSSOP-14

6000

20V, 0.33A single channel relay low-side driver with integrated current regulation

TLE9883QTA62

INFINEON

TQFP-48

3000

MOTIX™ Two-Phase Motor Driver with CAN-FD, TQFP-48

TLE98832QTW62S

INFINEON

TQFP-48

3000

MOTIX™ Full Bridge Driver IC - 2-Phase Motor Driver, TQFP-48

TLE98812QTW60

INFINEON

TQFP-48

3000

MOTIX™ Full Bridge Driver IC - 2-Phase Motor Driver, TQFP-48

TLE9852QX

INFINEON

VQFN-48

3000

40MHz, MOTIX™ Full Bridge Driver IC, VQFN-48
