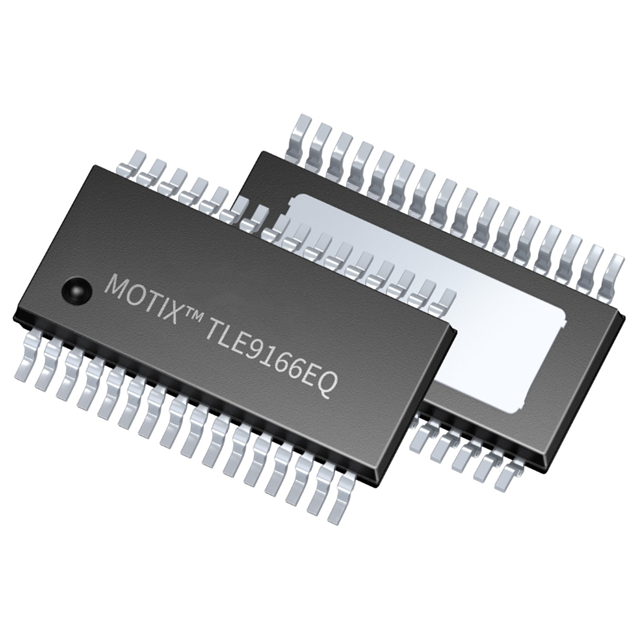

The TLE9166EQ is a versatile and powerful IC designed to achieve seamless integration and optimized power supply. This IC features six high-side switches, electrochrome mirror control, SP interface, timeout watchdog and configurable conversion speed. The MOTIX™ TLE9166EQ IC complies with the AEC-Q100 Grade 1 standard for automotive applications. This IC is used in classic door module, front driver reading door module and door area controller applications.

Technical Specification

Motor type - Stepper: -

Motor type - AC, DC: Brushed DC

Function: Driver - Fully integrated, control and power stage

Output configuration: Half-bridge (6), high-end (5)

Interface: PWM, SPI

Technology: NMOS

Step resolution: -

Application: General

Current - Output: 1.1A, 3A, 5A, 7A, 8A

Voltage - Power supply: 3V to 5.5V

Operating temperature: -40°C to 150°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Package/Shell: TSDSO-32

Application scenarios

The MOTIX™ TLE9166EQ is particularly suitable for the following application scenarios:

Door lock control module ‌ : provides precise motor control for optimized performance.

Safety Lock ‌ : Ensures secure and reliable locking function.

Folding and Adjusting Rearview mirror ‌ : For smooth rearview mirror operation.

Classic door module ‌ : Front driver read door module and door area controller.
