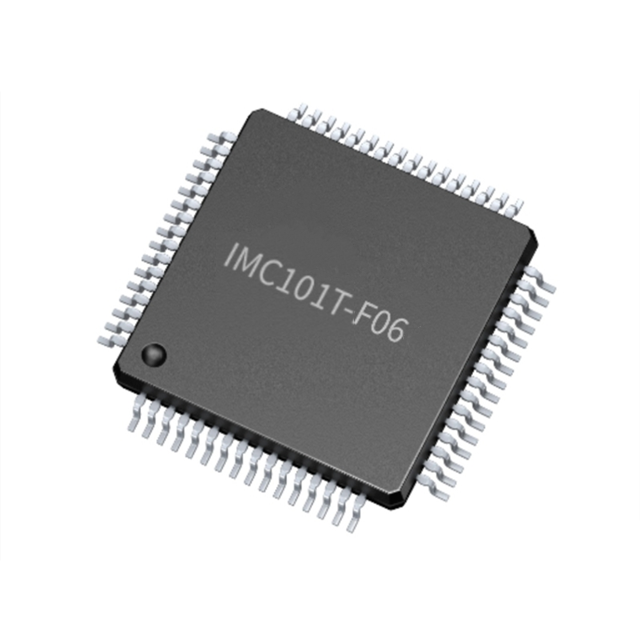

For picture reference, please see the specifications
< >

Commodity Model:IMC101T-F06

Trade Name:Motor Drivers, Controllers

Brand:INFINEON

Particular Year:25+

Package:LQFP-64

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IMC101T-F06
Package
LQFP-64
Describe
Motor driver simulation, PWM PG-LQFP-64

Product Description

IMC101T-F06 is a high performance motor control IC based on Permanent magnet Synchronous motor (PMSM) field Oriented control (FOC), especially suitable for variable speed drive applications. It is not only suitable for motor control, but also supports power factor correction (PFC) and scripting, which can efficiently control variable frequency drives ‌.


Basic parameters

Model: IMC101T-F06

Motor type - Stepper: -

Motor type - AC, DC: AC, synchronous

Function: Controller

Output configuration: -

Interface: Analog, PWM

Technology: -

Step resolution: -

Application: Household appliances

Current - Output: 50mA

Voltage - Power supply: 3V to 5.5V

Voltage - Load: -

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Package/Shell: 64-LQFP


IMC101T-F06 is a brand-new hardware platform with a wealth of innovative analog and motor control peripherals. This new generation of MCE further enhances the performance of the control algorithm, adds functions such as sensor support, and achieves precise rotor positioning, ready-to-use PFC algorithms, and faster host interface options.


Associated Products

Model

Brand

Package

Quantity

Describe

IMC302A-F064

INFINEON

LQFP-64

3000

PMSM/BLDC motor & PFC controller with additional 32-bit microcontroller

IMC101T-F048

INFINEON

LQFP-48

2500

Motor driver CMOS simulation, PWM PG-LQFP-48

L6482HTR

ST

HTSSOP38

2500

Bipolar Motor Driver Power MOSFET SPI 38-HTSSOP

DRV8841PWPR

TI

HTSS0P-28

50000

45V, 2.5A Bipolar Stepper or 2-Way H-Bridge Motor Driver IC with Current Regulation and PWM Control

LB11600JV-TLM-E

ON

SSOP-30

1000

Motor Driver PWM 4.5V-14V 30-SSOP

DRV110APWR

TI

TSSOP-14

6000

20V, 0.33A single channel relay low-side driver with integrated current regulation

TLE9883QTA62

INFINEON

TQFP-48

3000

MOTIX™ Two-Phase Motor Driver with CAN-FD, TQFP-48

TLE98832QTW62S

INFINEON

TQFP-48

3000

MOTIX™ Full Bridge Driver IC - 2-Phase Motor Driver, TQFP-48

TLE98812QTW60

INFINEON

TQFP-48

3000

MOTIX™ Full Bridge Driver IC - 2-Phase Motor Driver, TQFP-48

TLE9852QX

INFINEON

VQFN-48

3000

40MHz, MOTIX™ Full Bridge Driver IC, VQFN-48
