The DRV8332DKDR is a high-performance, integrated three-phase motor driver with an advanced protection system. Thanks to the low RDS (on) value of the power MOSFETs and the smart gate drive design, the motor driver can achieve up to 97% efficiency, making it possible to use smaller power supplies and heat sinks, making it ideal for energy efficient applications.

Product Attributes:

Output configuration: Half bridge (3)

Application: DC motor, general purpose

Interface: PWM

Load type: Inductance

Technology: Power MOSFET

On-resistance (typical) : 80 milliohm LS, 80 milliohm HS

Current - Output/channel: 8A

Current - Peak output: 13A

Voltage - Power supply: 10.8V ~ 13.2V

Voltage - load: 0V ~ 52.5V

Operating temperature: -40°C ~ 150°C (TJ)

Features: bootstrap circuit, status marker

Fault protection: current limiting, overtemperature, short circuit, UVLO

Mounting type: Surface mount type

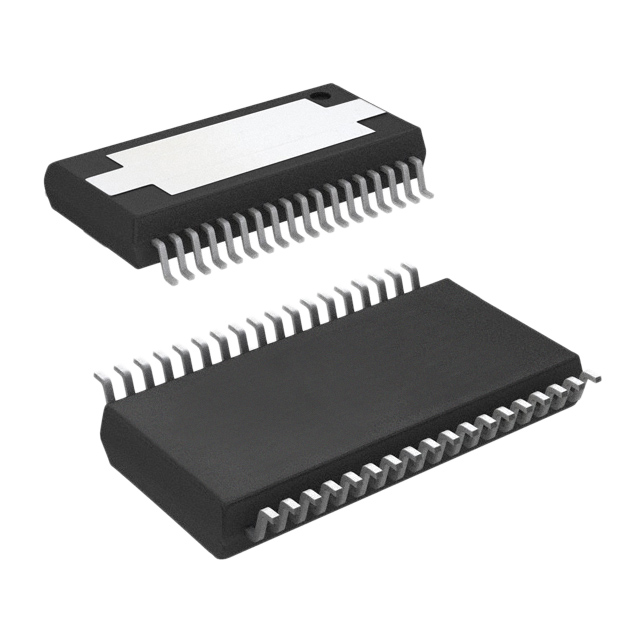

Package/housing: 36-BSSOP (0.433", 11.00mm wide) bare pad

Supplier device package: 36-HSSOP

Basic product number: DRV8332

Applications:

• Brushless direct current (BLDC) motor

• Three-phase permanent magnetic synchronous motor

• Inverter

• Half bridge drive

• Robot control system
