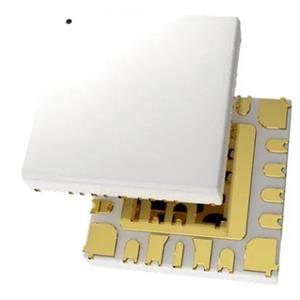

ADPA1122AEHZ is a gallium nitride, power amplifier that delivers 43 dBm with more than 43% power added efficiency across its 8.2 GHz to 11.8 GHz frequency range. ADPA1122AEHZ provides ±0.5 dB of gain flatness from 9.6 GHz to 11GHz.

Features

Internally matched and AC-coupled 20 W GaN power amplifier

Integrated temperature-compensated RF power detector

POUT with PIN = 22 dBm: 43.5 dBm typical from 9.6 GHz to 11GHz

Small signal gain: 31 dB typical from 9.6 GHz to 11 GHz

Power gain with PIN = 22 dBm: 21.5 dB typical from 8.2 GHz to11 GHz

PAE: 46% typical from 9.6 GHz to 11 GHz

Supply voltage: 28 V at 200 mA on 10% duty cycle

18-terminal, 7 mm × 7 mm, LCC_HS package

Applications

Weather radars

Marine radars

Military radars
