The LTC6602CUF is a dual-channel, matched, programmable bandpass or lowpass filter and differential driver. The LTC6602CUF's selectivity, combined with its phase matching and dynamic range, makes it ideal for filtering applications in RFID systems. With 2° phase matching accuracy between channels, the LTC6602CUF can be used in applications requiring highly matched filters (e.g., transmitter and receiver I and Q channels). Its programmable gain and fully differential input and output simplify implementation in most systems.

Both channels of the LTC6602CUF include a programmable low-pass and high-pass filter. To function as a band-pass filter, set the low-pass filter to the high-frequency cutoff frequency. To achieve a low-pass function, the high-pass filter can be bypassed. The filter cutoff frequency can be set using a single resistor, ensuring accuracy of 3%. Alternatively, an external clock can be used to control the filter cutoff frequency.

The LTC6602CUF operates on a single supply voltage of 2.7V to 3.6V and features a low-power shutdown mode.

 Features of the LTC6602CUF

Matching dual-channel filter/driver, ideal for RFID readers

Guaranteed phase matching within 2°

Guaranteed gain matching within 0.2dB

Configurable as low-pass or band-pass

Programmable 5th-order low-pass: 42kHz to 900kHz

Programmable 4th-order high-pass: 4.2kHz to 90kHz

Programmable gain: 1x, 4x, 16x, 32x

Simple pin programming or SPI interface

Low noise: -145dBm/Hz (referenced to input)

Low distortion: -75dBc (200kHz)

Differential, rail-to-rail input and output

Input range extends from 0V to 5V

Low voltage operation: 2.7V to 3.6V

Standby mode

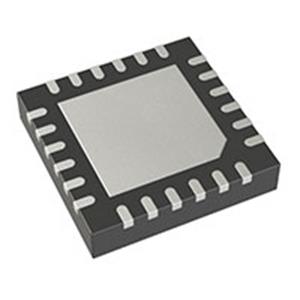

4mm x 4mm QFN package

Applications of the LTC6602CUF

Multi-protocol RFID readers: EPC-GEN2, ISD, and IPX

IDEN, PHS, and GSM base stations

Transponders, wireless links, and modems

Wireless telemetry

JTRS
