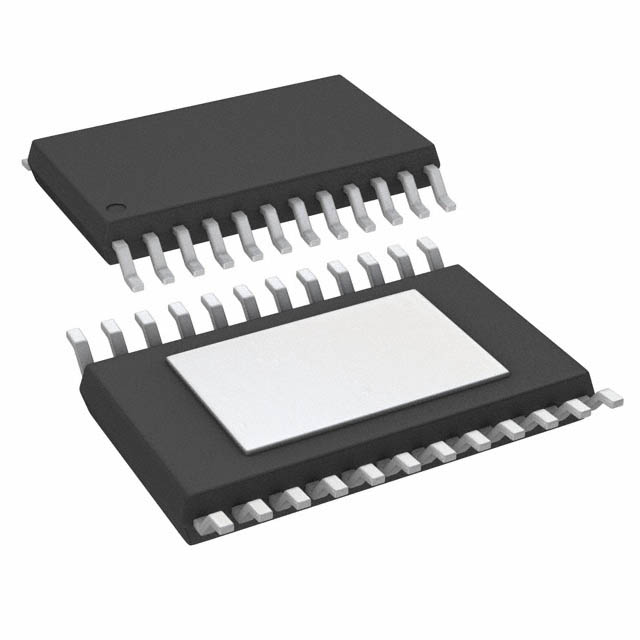

The STAP16DPS05XTTR is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The device contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bit D-type storage register. In the output stage, sixteen regulated current sources are designed to provide 5-100 mA constant current to drive the LEDs.

Features

• AECQ100 qualification

• Low voltage power supply down to 3 V

• 16 constant current output channels

• Adjustable output current through external resistor

• Short and open output error detection

• Serial data IN/parallel data OUT

• 3.3 V micro driver-able

• Output current: 5-100 mA

• Auto power-saving

• Max. clock frequency: 30 MHz

• 20 V current generator rated voltage

• Power supply voltage: from 3 V to 5.5 V

• Thermal shutdown for overtemperature protection

• ESD protection 2.0 kV HBM

Applications

• Dashboard and infotainment backlighting

• Exterior/interior lighting

• DTRLs
