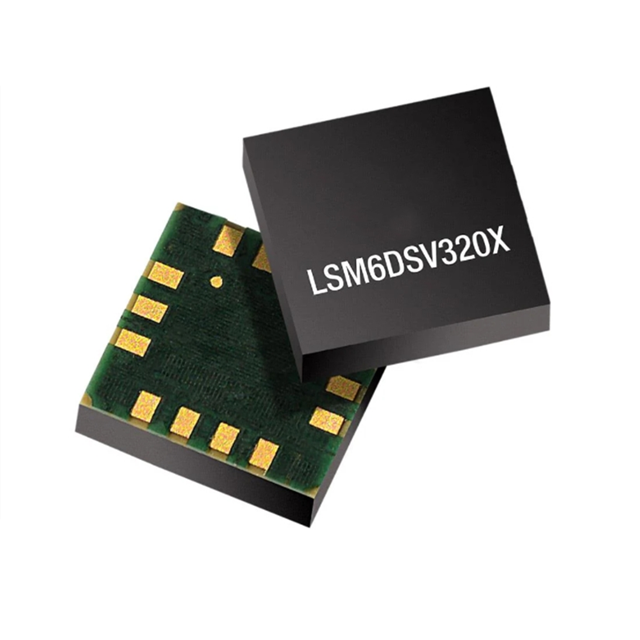

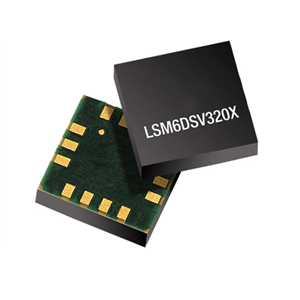

The LSM6DSV320XTR is a high-performance 6-axis inertial measurement unit (IMU) launched by STMicroelectronics. It features a 3mm×2.5mm ultra-compact package and integrates motion tracking and high-intensity impact measurement functions. It is mainly targeted at fields such as consumer electronics, wearable devices, smart home, and industrial Internet of Things.

This device supports edge computing and utilizes embedded advanced dedicated functions, such as a configurable finite state machine (FSM) for motion tracking and a machine learning core (MLC) for context awareness, to provide exportable AI capabilities for Internet of Things applications.

The LSM6DSV320XTR supports the Adaptive Self-Configuration (ASC) function, which can automatically and in real time reconfigure the device based on the specific motion patterns detected or the specific decision tree output configured in the MLC, without the intervention of the main processor.

The LSM6DSV320XTR is also embedded with a dedicated accelerometer sensor featuring an independent channel and filtering function, capable of detecting high g acceleration. It fully meets the impact requirements of sports, concussion detection, impact detection, and various automotive collision detection applications.

Main specifications

Sensor type: 6-axis

Sensing axes: X, Y, Z

Interface types: I2C, I3C, SPI

Output type: Digital

Acceleration: 16g, 320g

Resolution: 16 bits

Sensitivity: 0.061 mg/LSB, 0.122 mg/LSB, 0.244 mg/LSB, 0.488 mg/LSB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Power supply voltage - minimum: 1.08V

Power supply voltage - maximum: 3.6V

Working power supply current: 670 uA, 800 uA

Packaging/Cabinet: LGA-14L

Typical applications

• Internet of Things and connected devices

• Asset tracking

• Smartphones and handheld devices

• Car accident detection and impact detection

Wearable devices

• Motion tracking and gesture detection

• Augmented reality (AR)/virtual reality (VR)/mixed reality (MR) applications

• Indoor navigation

• EIS and OIS for camera applications

• Vibration monitoring and compensation
