IIS2DULPXTR is an intelligent digital triaxial linear accelerometer. Its MEMS and ASIC are specifically designed for industrial applications, combining extremely low supply current with multiple advanced features, including normally open anti-aliasing filtering, finite state machine (FSM), and a machine learning core (MLC) with adaptive self-configuration (ASC). And analog hub /Qvar sensing channels.

FSM and MLC with ASC provide excellent edge processing capabilities that are always available for IIS2DULPXTR, while the analog hub /Qvar sensing channel defines a new height of system optimization. The complete set of functions implemented by the MIPI I3C target interface and the embedded 128-level FIFO buffer of IIS2DULPXTR makes it a benchmark for system integration in terms of bill of materials, processing power and power consumption.

This device features user-selectable ranges of ±2g/±4g/±8g/±16g, and can measure acceleration at output data rates ranging from 1.6Hz to 800Hz.

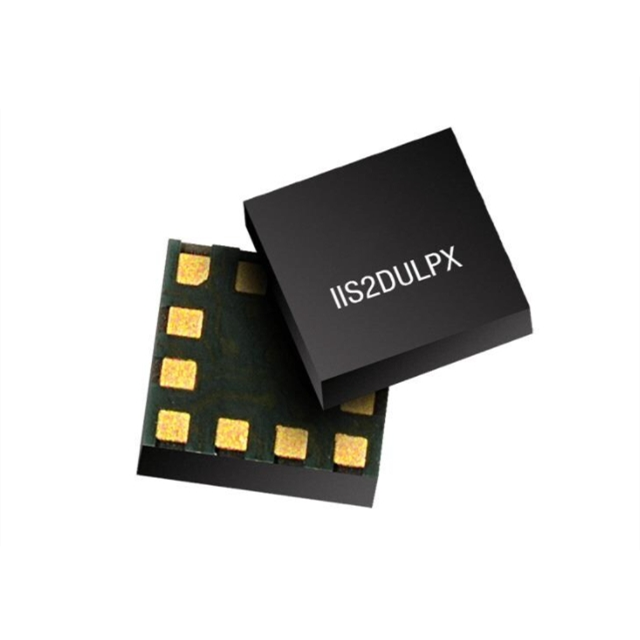

The IIS2DULPXTR adopts a thin and small plastic pad grid array (LGA) package, ensuring normal operation within a wider temperature range (-40 °C to +105 °C).

Main specifications

Type: Number

Axes: X, Y, Z

Acceleration range: ±2g, 4g, 8g, 16g

Sensitivity (LSB/g) : -

Sensitivity (mV/g) : -

Bandwidth: 400Hz

Output types: I2C, I3C, SPI

Voltage - Power supply: 1.62V to 3.6V

Features: Optional range, sleep mode, temperature sensor

Operating temperature: -40°C to 105°C

Installation type: Surface mount type

Package/Housing: 12-LGA (2x2)

Application scenarios

Industrial IoT and factory automation

Asset tracking

Portable healthcare devices and hearing AIDS

Tamper-proof equipment

Wireless sensor node

Electrical appliances and robots

Exercise activation function
