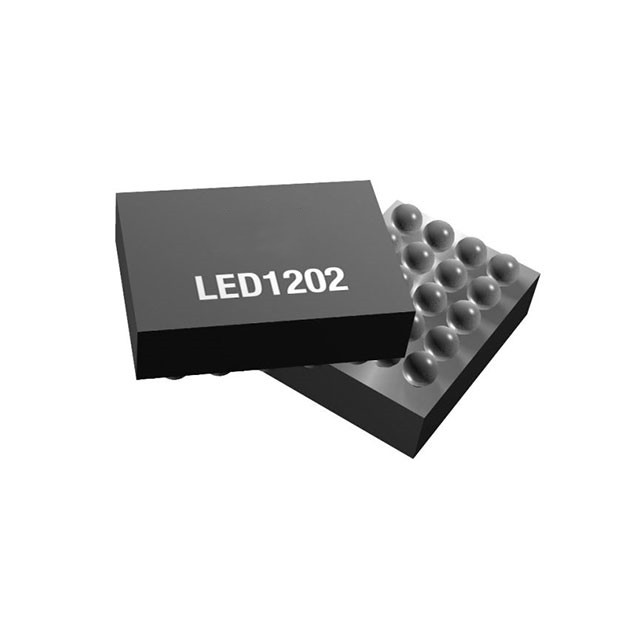

Commodity Model:LED1202JR

Trade Name:LED1202JR

Data Manual:LED1202JR.pdf

Brand:ST

Particular Year:23+

Package:WLCSP20

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
LED1202JR
Package
WLCSP20
Describe
LED Driver IC 12 Output DC DC Controller Analogue Dimming 20mA 20-Flip Chip (1.71x2.16)

Product Description


The LED1202JR is a 12-channel, low quiescent current LED driver with guaranteed 5 V output drive capability, delivering up to 20 mA per channel with a headroom voltage of only 350 mV (typical). The output current of each channel is individually adjustable with 8-bit analogue and 12-bit digital dimming controls.


The LED1202JR is available in a 1.71 x 2.16 x 0.5 mm, 0.4 mm pitch WLCSP20 package.


Product Attributes

Type: DC DC Controller

Topology: - Internal switch

Internal switch: None

Number of Outputs 12

Voltage - Supply (minimum): 2.6V

Voltage - Supply (Max): 5V

Voltage - Output: 5V

Current - Output/Channel: 20mA

Frequency: 400kHz

Dimming: Analogue

Application: LED Lighting

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 20-WFBGA, FCBGA

Supplier Device Package: 20-Flip Chip (1.71x2.16)


Applications

• RGB LED lighting, fade-in and fade-out breathing effect, indicator lights for:

– Wearable electronics

– Battery powered devices

– Portable accessories

Associated Products

Model

Brand

Package

Quantity

Describe

TPS92642QPWPRQ1

TI

HTSSOP-16

3000

Synchronous step-down infrared LED driver for automobiles

TPS92543QPKDRQ1

TI

HTQFP-48

3000

Automotive-grade LED driver with 65V synchronous boost controller

NCV78343DQ0R2G

ON

SSOP-36

3000

LED driver IC, a serial pixel controller for automotive (front) lighting

NCV78514PA0R2G

ON

TSSOP-16

3000

60V, 1.5A intelligent single-channel H-bridge automotive LED driver

TLD1120EL

INFINEON

PG-SSOP-14

5500

360mA, LITIX™ - Automotive LED Driver, PG-SSOP-14

LT3763EFE

ADI

TSSOP-28

3000

60V high current step-down LED driver controller

LT3795EFE

ADI

TSSOP-28

3000

110V LED controller with spread spectrum frequency modulation function

LT3744EUHE

ADI

QFN-36

3000

High-current, synchronous step-down LED driver

LT3743EUFD

ADI

QFN-28

3000

High-current, synchronous step-down LED driver with three-state control function

LT8391EUFD

ADI

QFN-28

3000

60V, synchronous, four-switch, step-down - step-up LED controller
